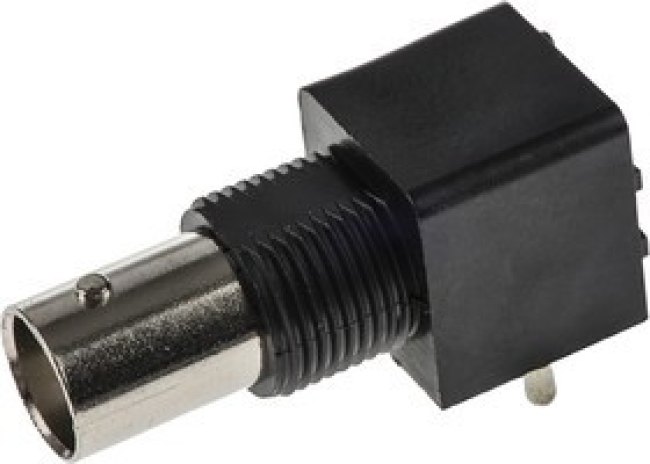

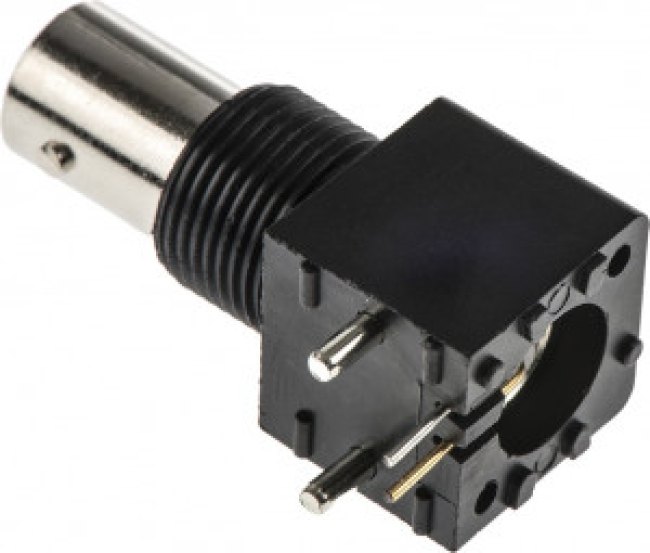

1-1634622-0

RF COAXIAL, BNC, RIGHT ANGLE JACK, 75OHM; Connector Type:BNC Coaxial; Connector Body Style:Right Angle Jack; Coaxial Termination:Solder; Impedance:75ohm; Coaxial Cable Types:-; Contact Material:Brass; Contact Plating:Gold Plated Contacts; Frequency Max:2GHz; Connector Mounting:PCB Mount; Product Range:ZDC Series; SVHC:Lead (15-Jan-2019); Body Plating:Nickel; Colour:Black; Connector Mounting Orientation:PC Board; Contact Resistance:1.5mohm; Insulation Resistance:5000Mohm; No. of Mating Cycles:50; Operating Temperature Max:+85°C; Operating Temperature Min:-55°C; Termination Method:Solder; Withstand Voltage:1500V; Working Voltage:500V
