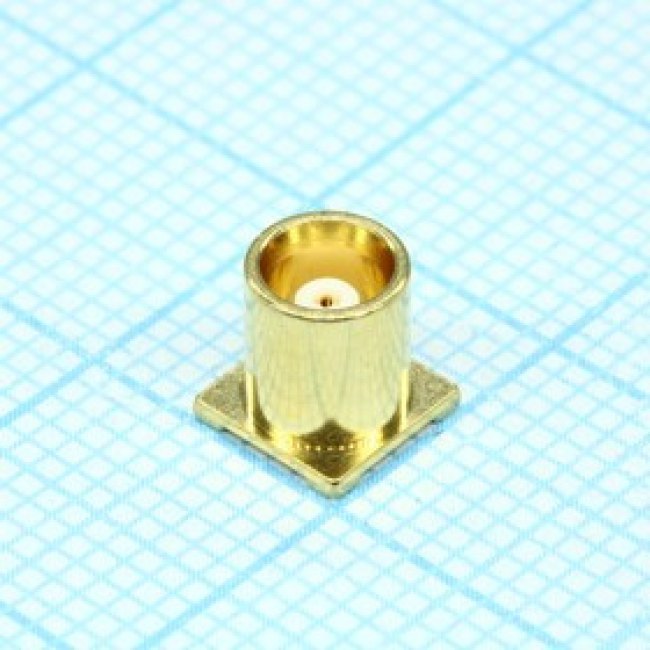

1-1337582-0

ЭлектроэлементRF COAXIAL, MCX, STRAIGHT JACK, 50OHM; Connector Type:MCX Coaxial; Connector Body Style:Straight Jack; Coaxial Termination:Surface Mount Vertical; Impedance:50ohm; Coaxial Cable Types:-; Contact Material:Brass; Contact Plating:Gold Plated Contacts; Frequency Max:6GHz; Connector Mounting:PCB Mount; Product Range:-; SVHC:Lead (15-Jan-2019); Body Plating:Gold; Centre Contact Resistance:5mohm; Insulation Resistance:1000Mohm; No. of Mating Cycles:500; Operating Temperature Max:165В°C; Operating Temperature Min:-65В°C; Termination Method:Solder
