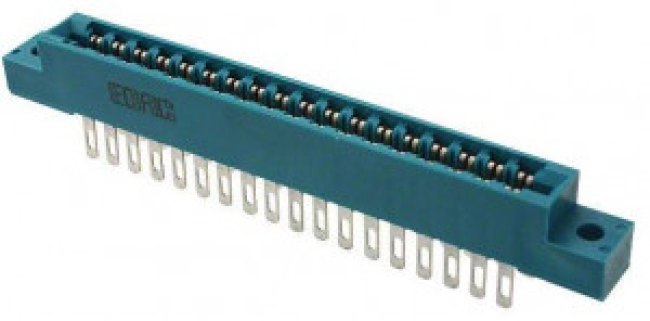

307-036-500-202, Standard Card Edge Connectors 36P SOLDER EYELETS 5.08mm ROW SPACE

Connectors\Card Edge Connectors\Standard Card Edge Connectors307 Series 3.96mm Pitch Card Edge Connectors EDAC 307 Series Card Edge Connectors feature 3.96mm contact spacing by 5.08mm row spacing and accept a 1.57mm nominal thickness PCB. EDAC 307 Series Card Edge Connectors offer single- or dual-row configurations and a variety of mounting options. These connectors accept between contact and in-contact polarizing keys. The series offers 5A continuous current rating and 1800V AC rms withstand voltage at sea level between adjacent contacts. The 307 Series connectors operate over a -40°C to +105°C temperature range.
