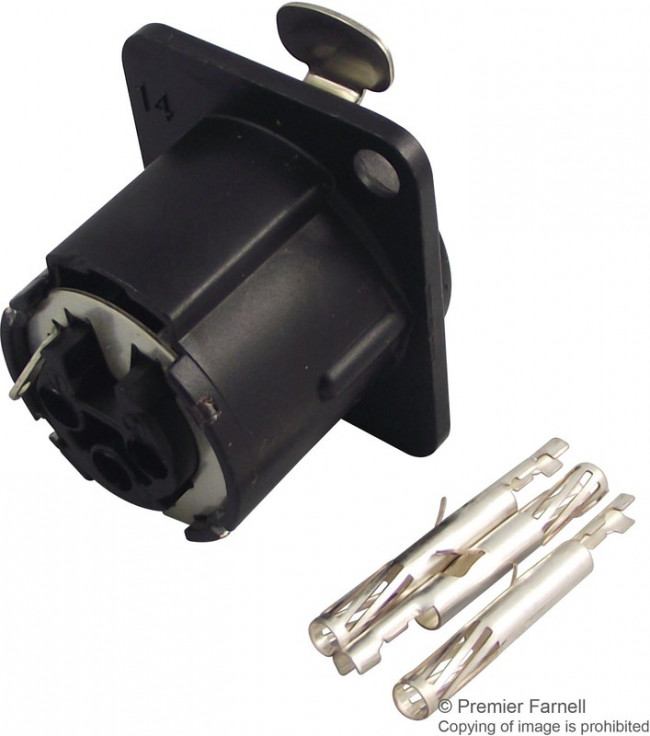

NC3FD-LX-HA-BAG, Аудио разъем XLR, 3 контакт(-ов), Гнездо, Монтаж в Панель, Контакты с Покрытием из Серебра

Разъемы\Аудио и Видео Разъемы и Переходники\Аудио и Видео Разъемы\Разъемы XLRThe NC3FD-LX-HA-BAG from Neutrik is a 3 pole female XLR receptacle chassis connector with standard B crimp termination. Metal housing of receptacle offers best overall RF protection and electromagnetic shielding, new duplex ground contact for excellent contact integrity between chassis and cable connector. The unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact. • D style housing provides installation compatibility with industry standard D mounting dimensions• Optional connection to easily join pin1 to chassis ground• Latch lock device, steel Ck67 locking element• Dielectric strength of 1.5KVDC, 1A rated current per contact and rated voltage < 50V• Lifetime > 1000 mating cycles, wire size range from 24 AWG to 22AWG (0.22mm² - 0.34 mm²)• Polyamide (PA 6.6 30 % GR) insert, bronze (CuSn6) contact with silver plating• Zinc die-cast (ZnAl4Cu1) shell with black chromium plating• Flammability rating meets UL 94 HB, IEC 61076-2-103 standard compliance, IP 40 protection class• UL ECBT2.E135070 certified• Temperature range from -30°C to +80°C
