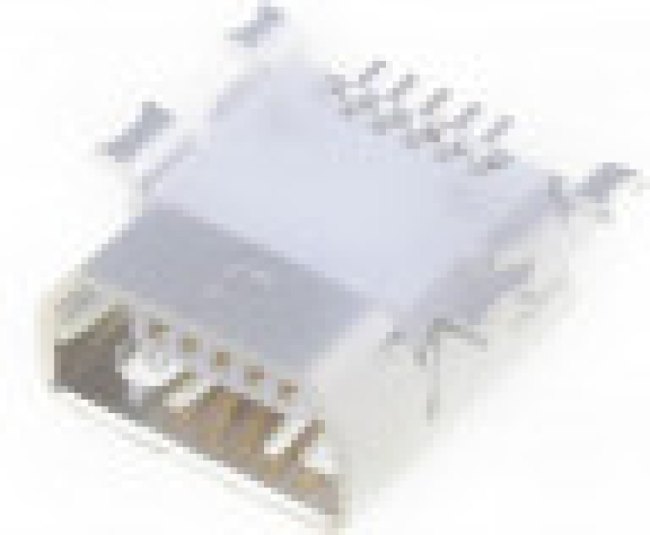

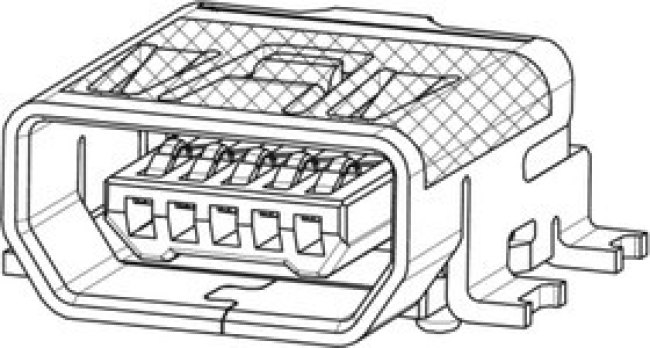

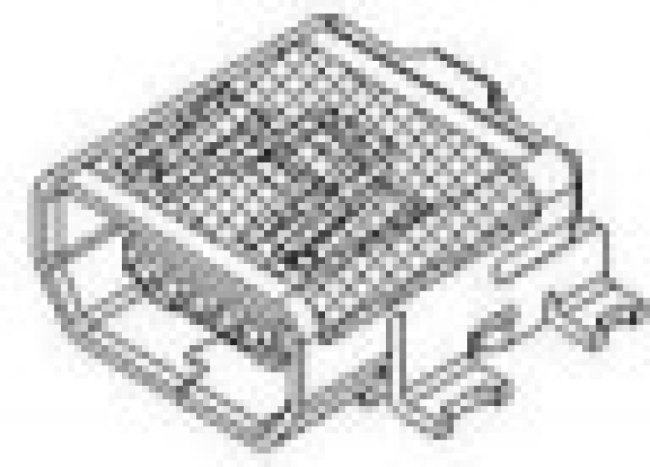

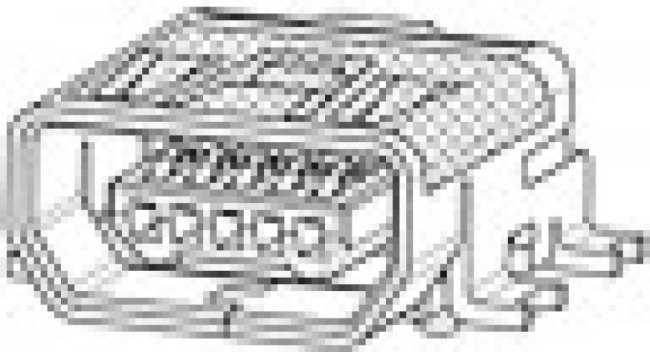

Name: 67803-8020, Conn Mini USB 2.0 Type AB RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port T/R
Brand: Molex
SKU: 67803-8020

Кнопки, переключатели, разъемы, реле Разъемы USB, FireWire Molex 67803-8020, Conn Mini USB 2.0 Type AB RCP 5 ...

Подробное описание

200 ₽

- +

Бонус: 4 !

Бонусная программа

Итого: 200 ₽

Купить

These Molex range of USB OTG (On-the-Go) connectors are compatible with the On-The-Go supplement (Rev.

Информация о производителе
Производитель	Molex
Бренд	Molex
Основные
body orientation	Right Angle
color	Gray
connector type	Mini USB Type AB Receptacle
contact material	Copper Alloy
contact plating	Gold
current rating	1 A
Дата загрузки	07.04.2024
eccn (us)	ear99
eu rohs	compliant
factory pack quantity	500
features	USB OTG
flammability rating	UL 94 V-0
gender	RCP
hts	8538.90.81.80
insulation resistance	100 MOhms
insulation resistance (mohm)	100
категория	Кнопки, переключатели, разъемы, реле/Разъемы
manufacturer	Molex
maximum contact resistance (mohm)	50
maximum current rating (a)	1/Contact
maximum operating temperature	+50°C
maximum operating temperature (°c)	50
maximum voltage rating	30V
minimum operating temperature	0.0°C
minimum operating temperature (°c)	0
mounting	surface mount
mounting angle	Right Angle
mounting type	Surface Mount
number of contacts	5
number of ports	1
number of terminals	5
packaging	Tape and Reel
партномер	8002181211
part # aliases	678038020
part status	active
product	Mini USB Type AB Connectors
product category	USB Connectors
product depth (mm)	9
product height (mm)	4
product length (mm)	09.09.2024
rohs	Details
series	67803
series number	67803
shell material	Copper Alloy
shell plating	Tin Over Nickel
standard	USB
terminal pitch (mm)	0.8
termination method	Solder
termination style	SMD/SMT
type	Mini USB 2.0 Type AB
unit weight	0.024163 oz
usb version	2
voltage rating	30 V
Время загрузки	19:12:25
