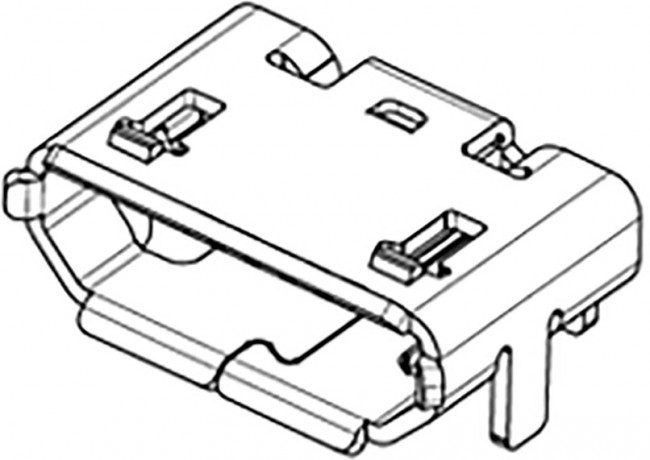

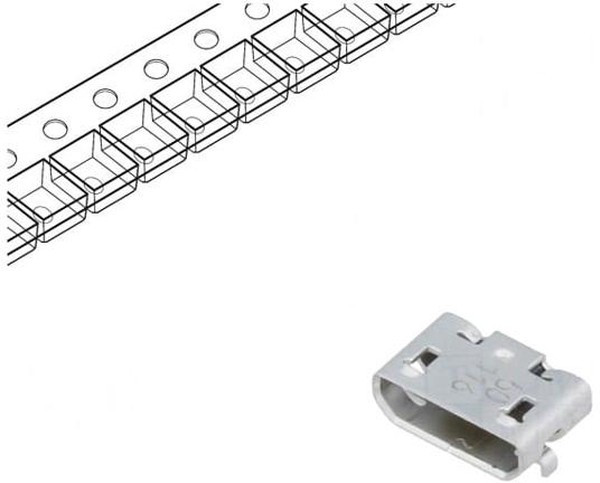

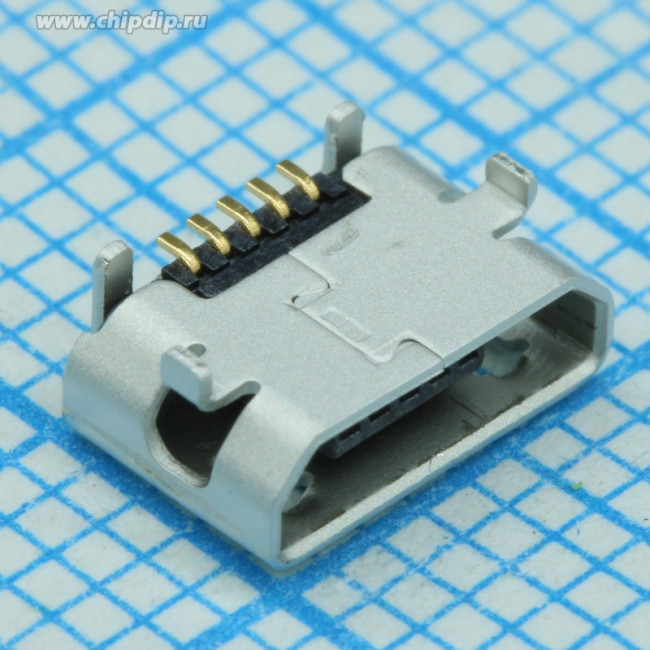

1050171001, Гнездо, USB B micro, на PCB, SMT, PIN: 5, горизонтальный, USB 2.0
Оставить отзыв
В избранноеВ сравнение
Артикул: 1050171001
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T/R
| Информация о производителе | |
| Производитель | Molex |
| Бренд | Molex |
| Основные | |
| automotive | No |
| body orientation | Right Angle |
| color | Black |
| color: | Black |
| connector type | Receptacle |
| contact material | Copper Alloy |
| contact material: | Gold |
| contact plating | Gold |
| contact plating: | Gold |
| current rating | 1.8 A |
| current rating: | 1.8 A |
| Дата загрузки | 07.04.2024 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity | 14000 |
| factory pack quantity: factory pack quantity: | 2000 |
| features | Shielded |
| features: | Shielded |
| flammability rating | UL 94 V-0 |
| flammability rating: | UL 94V-0 |
| gender | Female |
| gender: | Receptacle(Female) |
| insulation resistance | 1000 MOhms |
| insulation resistance: | 1000 MOhms |
| insulation resistance (mohm) | 1000 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Molex |
| manufacturer: | Molex |
| mating cycle (cycles) | 10000 |
| maximum contact resistance (mohm) | 30 |
| maximum current rating (a) | (1.8/1)/Contact |
| maximum operating temperature | +85°C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum voltage rating | 30VAC |
| minimum operating temperature | -30.0°C |
| minimum operating temperature: | -30 C |
| minimum operating temperature (°c) | -30 |
| mounting | surface mount |
| mounting angle | Right |
| mounting angle: | Right Angle |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of contacts | 5 Contact |
| number of contacts: | 5 Contact |
| number of ports | 1 Port |
| number of ports: | 1 Port |
| number of terminals | 5 |
| operating temperature range | -30 C to+85 C |
| packaging | Reel |
| партномер | 8022316927 |
| part status | active |
| ppap | No |
| product | Micro USB Type B Connectors |
| product: | Micro USB Type B Connectors |
| product category | USB Connectors |
| product category: | USB Connectors |
| product type: | USB Connectors |
| rohs | Details |
| series | 105017 |
| series: | 105017 |
| series number | 105017 |
| shell material | Stainless Steel |
| shell plating | Tin |
| shell plating: | Tin |
| standard | USB |
| standard: | USB |
| subcategory: | USB Connectors |
| terminal pitch (mm) | 0.65 |
| termination method | Solder |
| termination style | SMD |
| termination style: | SMD/SMT |
| type | Micro USB 2 Type B |
| type: | Type B |
| usb version | 2 |
| вес, г | 0.2 |
| voltage rating | 30 VAC |
| voltage rating: | 30 VAC |
| Время загрузки | 18:31:59 |
