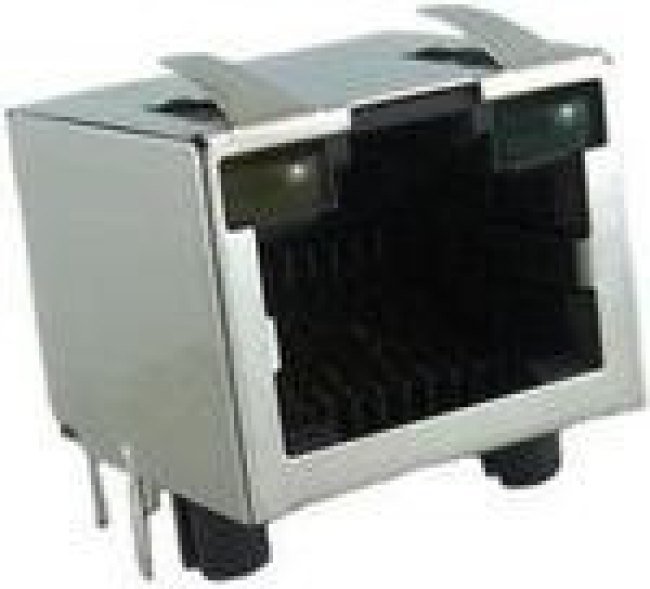

RJHSE-5384-04, Modular Jack - Right Angle, Input Output Connectors 8P8C, RA, Shield, With LEDs
Оставить отзыв
В избранноеВ сравнение
Артикул: RJHSE-5384-04
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Connectors\I/O Connectors\Connector Telephone and TelecomConn RJ-45 F 32 POS 1.02mm Solder RA Thru-Hole 48 Terminal 4 Port Tray
| Информация о производителе | |
| Производитель | Amphenol |
| Бренд | Amphenol |
| Основные | |
| application: | 10/100 Base-T |
| automotive | No |
| body orientation | Right Angle |
| category number | Cat 5 |
| color: | Black |
| configuration: | 1x4 |
| contact material | Phosphor Bronze |
| contact material: | Phosphor Bronze |
| contact plating | Gold Over Nickel |
| contact plating: | Gold |
| current rating: | 1.5 A |
| current rating (max) | 1.5/Contact(A) |
| Дата загрузки | 01.04.2024 |
| eccn (us) | ear99 |
| factory pack quantity: factory pack quantity: | 40 |
| family | RJHSE |
| flammability rating: | UL 94 V-0 |
| gender | F |
| gender: | Jack(Female) |
| housing color | Black |
| housing material | Thermoplastic |
| insulation resistance: | 500 MOhms |
| insulation resistance (mohm) | 500 |
| integrated magnetics | No |
| ip rating: | IP20 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer: | Amphenol |
| mating cycles: | 750 Cycles |
| mating cycle (cycles) | 200 |
| maximum contact resistance (mohm) | 20 |
| maximum current rating (a) | 1.5/Contact |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum voltage rating | 125VAC |
| minimum operating temperature: | -55 C |
| minimum operating temperature (°c) | -55 |
| mounting | Through Hole |
| mounting angle: | Right Angle |
| mounting style | Through Hole |
| mounting style: | Through Hole |
| number of contacts | 32 |
| number of contacts: | 8 Contact |
| number of loaded positions | 32 |
| number of ports | 4 |
| number of ports: | 4 Port |
| number of positions: | 8 Position |
| number of rows: | 1 Row |
| number of terminals | 48 |
| operating temp range | -55C to 85C |
| packaging | Tray |
| packaging: | Tray |
| партномер | 8001075111 |
| part status | active |
| performance category: | Cat 5 |
| ppap | No |
| product: | Connectors |
| product category: | Modular Connectors/Ethernet Connectors |
| product depth (mm) | 15.76(mm) |
| product height (mm) | 13.46(mm) |
| product length (mm) | 63.75(mm) |
| product style | Multiport |
| product type: | Modular Connectors/Ethernet Connectors |
| series: | RJHSE |
| shell material | Stainless Steel |
| shell plating | Tin |
| shielding | Yes |
| shielding: | Shielded, EMI Fingers |
| subcategory: | Modular Connectors/Ethernet Connectors |
| tab direction | Tab Up |
| terminal pitch (mm) | 01.02.2024 |
| termination method | Solder |
| termination style: | Solder |
| type | RJ-45 |
| type: | Modular |
| usoc codes: | RJ45 |
| voltage rating: | 125 VAC |
| Время загрузки | 10:01:40 |
