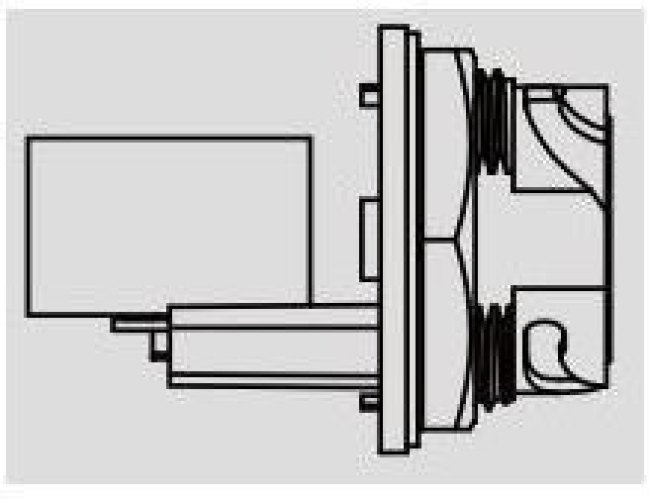

RDP-5SPFFH-TCU7001, Modular Connectors / Ethernet Connectors PANEL LARGE SIZE LCK RJ45 D SZ 1" 20UNEF

Оставить отзыв
В избранноеВ сравнение
Артикул: RDP-5SPFFH-TCU7001
Кнопки, переключатели, разъемы, реле Разъемы Телефонные и сетевые (LAN) Amphenol RDP-5SPFFH-TCU7001, Modular Connectors / ...
Amphenol
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
colorBlack
2 640
- +
Бонус: 52.8 !
Бонусная программа
Итого: 2 640
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\Modular Connectors / Ethernet ConnectorsRugged Ethernet SolutionsAmphenol Socapex RJ Field Bus Interconnect System allows users to quickly and reliably transform standard telecommunications and data communication mediums into rugged, military, and industrial connectors for harsh environments. This rugged Ethernet series offers a wide range of options for flexibility, including reverse bayonet, push/pull, bayonet, threaded, and lever coupling configurations in both plastic and metal materials. The enables designers to choose the best solution for their application.
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
colorBlack
color:Black
configuration:1x1
contact materialCopper Alloy
contact material:Copper Alloy
contact platingGold
contact plating:Gold
current rating:1.5 A
Дата загрузки01.04.2024
ethernet connector typeRJ45 Connector
factory pack quantity: factory pack quantity:10
flammability ratingUL 94 V-0
flammability rating:UL 94 V-0
genderFemale
gender:Jack(Female)
housing materialNylon
insulation resistance500 MOhms
insulation resistance:500 MOhms
ip ratingIP67
ip rating:IP67
категорияКнопки, переключатели, разъемы, реле/Разъемы
lan categoryCat5e
manufacturerAmphenol
manufacturer:Amphenol
maximum operating temperature:+105 C
minimum operating temperature:-40 C
mounting angleStraight
mounting angle:Straight
mounting stylePanel
mounting style:Panel Mount
mounting typePanel Mount
number of contacts8 Contact
number of contacts:8 Contact
number of ports1 Port
number of ports:1 Port
number of positions8 Position
number of positions:8 Position
number of ways08.08.2024
orientationStraight
партномер8004852107
part # aliasesLTWRDP-5SPFFH-TCU7001
performance categoryCat 5e
performance category:Cat 5e
productReceptacles
product:Connectors
product categoryModular Connectors/Ethernet Connectors
product category:Modular Connectors/Ethernet Connectors
product type:Modular Connectors/Ethernet Connectors
rohsDetails
seriesRDP
shieldingShielded
shielding:Shielded
shield typeSTP
subcategory:Modular Connectors/Ethernet Connectors
termination styleSolder
тип разъёмаRJ-45
type:Circular
usoc codesRJ45
usoc codes:RJ45
вес, г30
voltage rating:57 VDC
Время загрузки10:19:16
width25.4mm
