ACPM-RN-AU, Телефонный аудио разъем, 1/4" моно, угловой, отделка никелем, 2 контакт(-ов), Штекер, 6.35 мм
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты

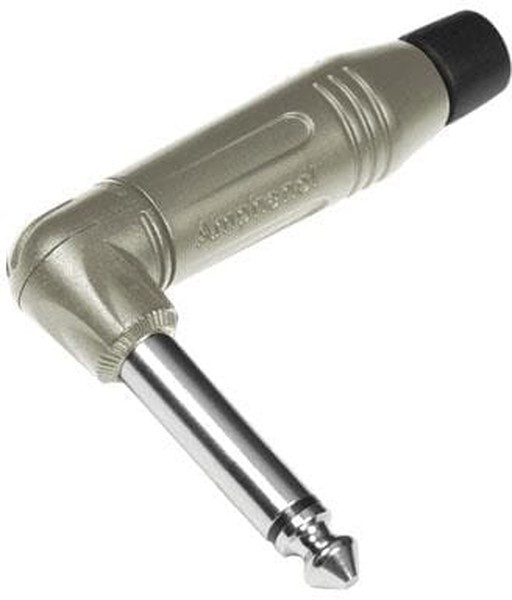

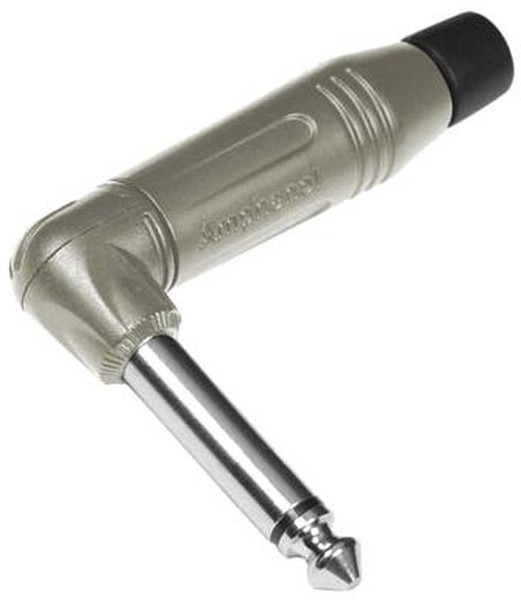

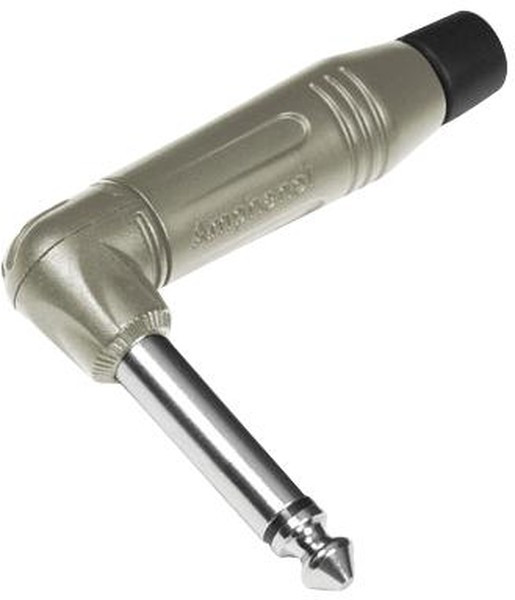

Разъемы\Аудио и Видео Разъемы и Переходники\Аудио и Видео Разъемы\Аудио РазъемыThe ACPM-RN-AU from Amphenol is a M series (musician range) 2 pole 1/4" mono phone plug with solder termination.
• M series right angle with satin nickel finish• Die-cast shell, gold plated contacts, precision machined contacts• Maximum wire gauge is 16AWG (1.5mm²)(stranded wire)• Flammability rating of insulating plastics is UL94V-0• Current carrying capacity is 10A(depends on mating connector and cable)• Insulation resistance (initial) is >2Gohm, dielectric strength is 1500VDC• Operating temperature range from -25°C to +70°C (-13°F to +158°F), protection class is IP40• Minimum mating cycles is 1000 without any physical damage• Cable outer dimension is 3mm to 6.5mm (0.118" to 0.256")
