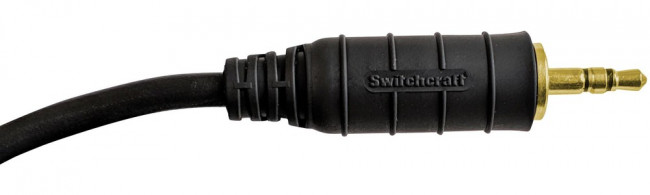

35HDSAU12, Phone Connectors 3.5MM SLD STEREO PLG .12 GOLD

Оставить отзыв
В избранноеВ сравнение
Артикул: 35HDSAU12
Кнопки, переключатели, разъемы, реле Разъемы Телефонные и сетевые (LAN) Switchcraft 35HDSAU12, Phone Connectors 3.5MM SLD STEREO ...
Информация о производителе
ПроизводительSwitchcraft
БрендSwitchcraft
Основные
actual diameter0.140"" (3.56mm)
3 330
+
Бонус: 66.6 !
Бонусная программа
Итого: 3 330
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\Audio & Video Connectors\Phone ConnectorsSealed 3.5mm Plugs Switchcraft Sealed 3.5mm Plugs are waterproof, IP68-sealed plugs that protect cables from ingress of water in harsh environments. Switchcraft S series Sealed 3.5mm Plugs feature an overmolded handle with durable flex relief rubber that eliminates harsh bends and protects cables from damage. These 3.5mm Switchcraft plugs are available with or without a locking collar and are compatible with sealed or unsealed jacks.
Информация о производителе
ПроизводительSwitchcraft
БрендSwitchcraft
Основные
actual diameter0.140"" (3.56mm)
body colorGold, Black
body materialCopper Alloy
cable opening0.125"" ~ 0.150"" (3.18mm ~ 3.81mm)
connector typePhone Plug
contact materialCopper Alloy
contact material:Copper Alloy
contact material - platingGold
contact plating:Gold
contact rating:4 A
current rating (amps)4A
Дата загрузки01.04.2024
диаметр штыря3.5мм
eccnEAR99
factory pack quantity: factory pack quantity:100
featuresSealed, Strain Relief
genderMale
gender:Male
housing materialCopper Alloy
housing material:Thermoplastic(TP)
htsus8536.69.8000

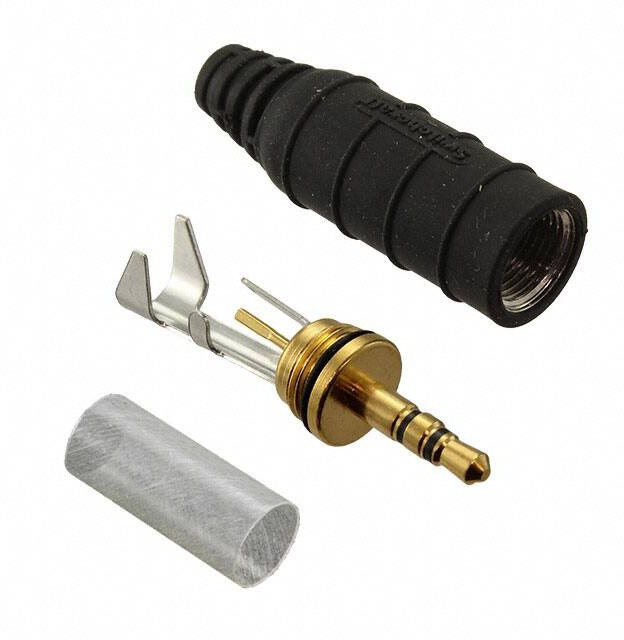

includes4 pcs - 1 Connector, 1 Handle, 1 Insulator Tube, 1
industry recognized mating diameter3.50mm (0.141"", 1/8"", Mini Plug) - Headphone
internal switch(s)Does Not Contain Switch
категорияКнопки, переключатели, разъемы, реле/Разъемы
линейка продукции35HDS Series
manufacturer:Switchcraft
материал корпуса соединителяCopper Alloy Body
mating cycles:500 Cycle
mating length/depth0.560"" (14.20mm)
moisture sensitivity level (msl)Not Applicable
монтаж разъемаCable Mount
mounting style:Cable
mounting typeFree Hanging (In-Line)
number of positions:3 Position
number of positions/contacts3 Conductors, 3 Contacts
operating temperature-20В°C ~ 85В°C
orientation:Straight
packageBulk
packaging:Bulk
партномер8004816317
покрытие контактаGold Plated Contacts
product category:Phone Connectors
product type:Phone Connectors
series35HD ->
series:S
shieldingUnshielded
signal linesStereo (3 Conductor, TRS)
standard:3.5 mm, 1/8 in
subcategory:Audio & Video Connectors
switch configuration:Not Switched
terminationSolder Eyelet(s)
termination style:Solder
тип электрического разъемаPlug(Посмотреть сопутствующие разъемы)
tradename:35HD
вес, г12
voltage - rated250VAC, 140VDC
voltage rating:250 V
Время загрузки10:16:42
