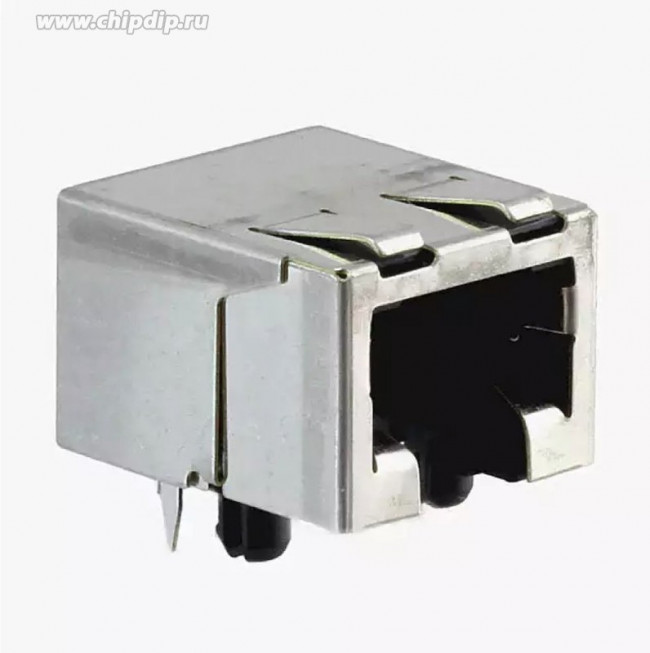

A range of Cat5 RJ45 stacked modular jack connectors with a low profile design that enable more ports to be mounted in less space on the PCB.
Информация о производителе | |
Производитель | TE Connectivity |
Бренд | TE Connectivity |
Основные | |
application: | 10 Base-T |
color: | Black |
configuration: | 1x1 |
contact material | Phosphor Bronze |
contact material: | Phosphor Bronze |
contact plating | Gold |
contact plating: | Gold |
current rating: | 1.5 A |
Дата загрузки | 01.04.2024 |
ethernet connector type | RJ45 Connector |
factory pack quantity: factory pack quantity: | 190 |
flammability rating: | UL 94 V-0 |
gender | Female |
gender: | Jack(Female) |
категория | Кнопки, переключатели, разъемы, реле/Разъемы |
lan category | Cat3 |
manufacturer: | TE Connectivity |
maximum operating temperature: | +70 C |
minimum operating temperature: | -40 C |
mounting angle: | Right Angle |
mounting style: | Through Hole |
mounting type | PCB Mount |
number of ports | 6 |
number of ports: | 1 Port |
number of positions: | 8 Position |
number of positions/contacts per port: | 8P8C |
number of ways | 8 |
orientation | Right Angle |
packaging: | Tray |
партномер | 8005883736 |
performance category: | Cat 3 |
product: | Connectors |
product category: | Modular Connectors/Ethernet Connectors |
product type: | Modular Connectors/Ethernet Connectors |
series | 35338556 |
shielding: | Shielded |
shield type | Shielded |
subcategory: | Modular Connectors/Ethernet Connectors |
tab direction | Tab Down |
termination style: | Solder |
type: | Modular |
usoc codes: | RJ45 |
Время загрузки | 10:00:02 |
width | 16.5mm |
Отзывов нет
