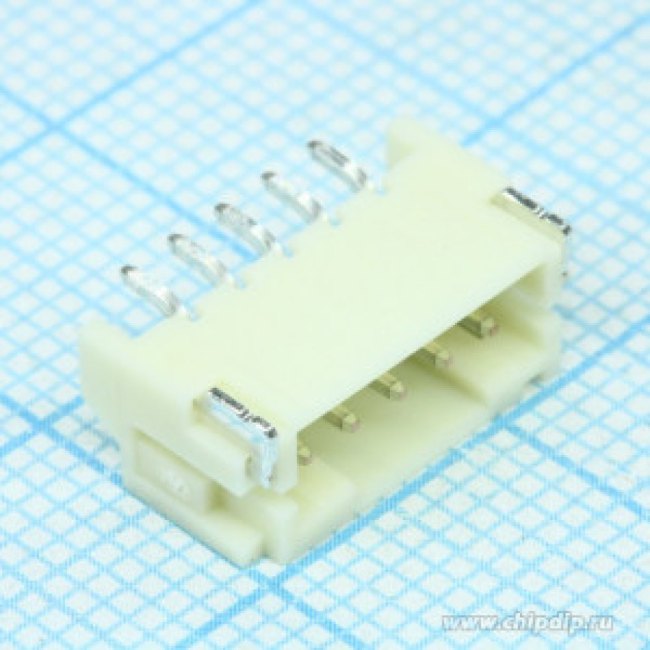

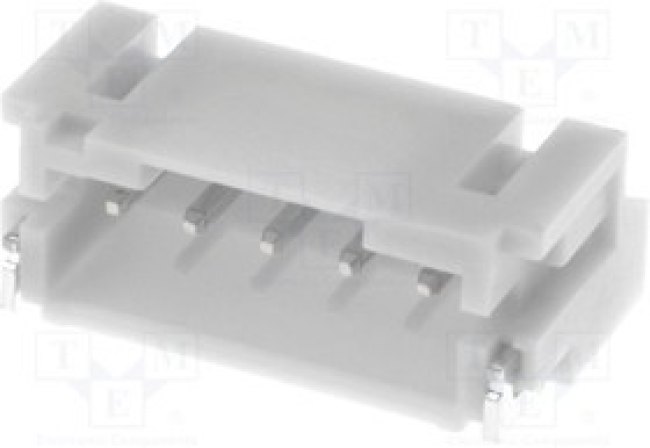

S5B-PH-SM4-TB(LF)(SN)

HEADER, SIDE ENTRY, SMD, 5WAY; Pitch Spacing:2mm; No. of Contacts:5Contacts; Gender:Header; Product Range:PH Series; Contact Termination Type:Surface Mount; No. of Rows:1Rows; Contact Plating:Tin Plated Contacts; Contact Material:Brass; SVHC:No SVHC (27-Jun-2018); Approval Bodies:CSA, TUV, UL; Colour:White; Contact Resistance Max:10mohm; Current Rating:2A; Flammability Rating:UL94V-0; Insulation Resistance:1000Mohm; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Voltage Rating VAC:100V; Working Voltage:100V
