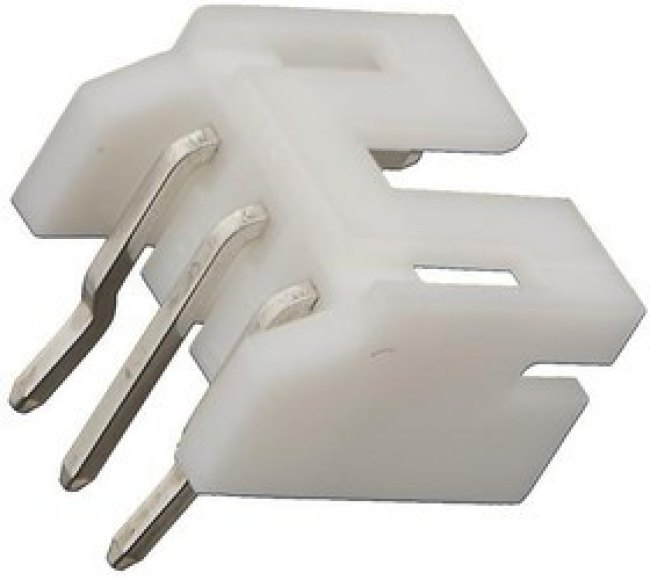

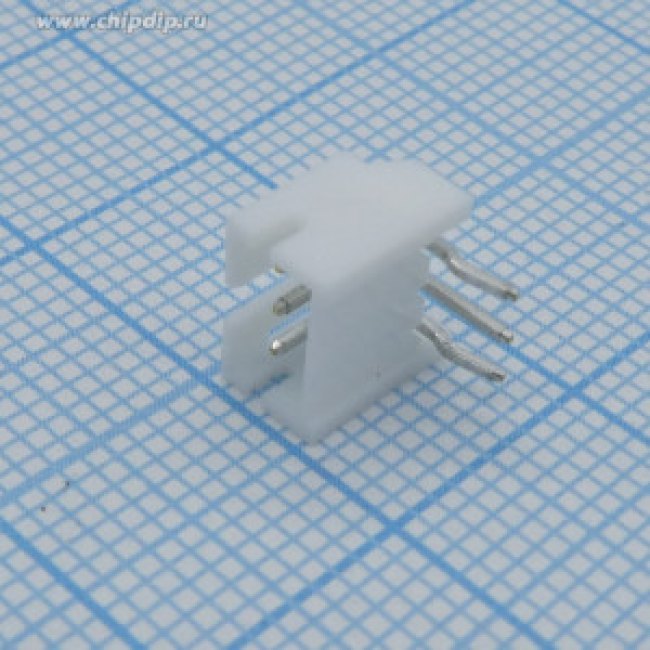

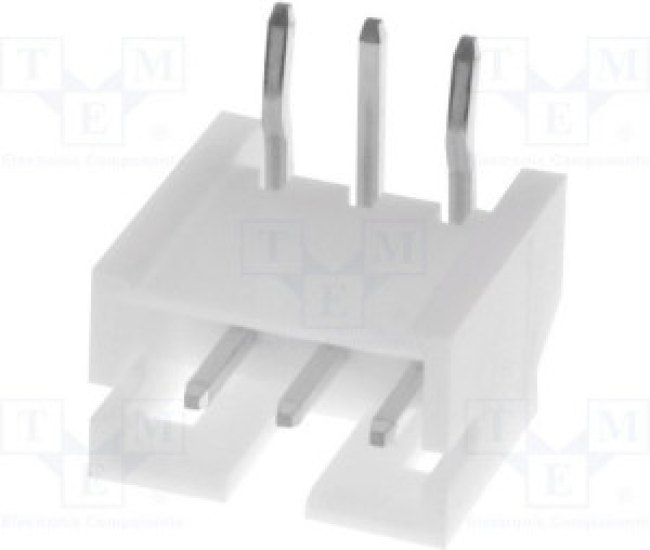

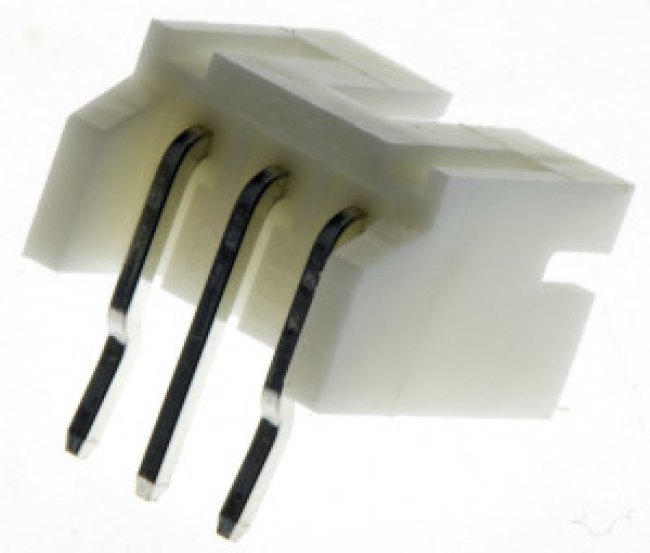

S3B-PH-K-S(LF)(SN)

ЭлектроэлементCONNECTOR, HEADER, THT, R/A, 2MM, 3WAY; Pitch Spacing:2mm; No. of Contacts:3Contacts; Gender:Header; Product Range:PH Series; Contact Termination Type:Through Hole; No. of Rows:1Rows; Contact Plating:Tin Plated Contacts; Contact Material:Brass; SVHC:No SVHC (17-Dec-2015); Approval Bodies:CSA, TUV, UL; Colour:White; Contact Resistance Max:10mohm; Current Rating:2A; Flammability Rating:UL94V-0; Insulation Resistance:1000Mohm; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Voltage Rating VAC:100V; Working Voltage:100V
