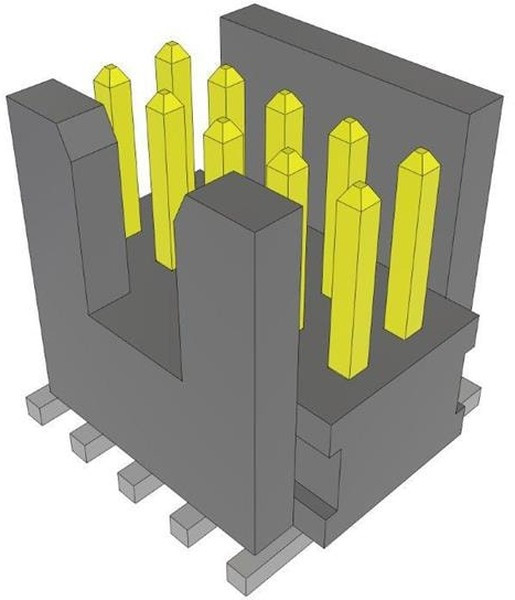

FTSH-105-01-L-DV-K, Conn Unshrouded Header HDR 10 POS 1.27mm Solder ST Top Entry SMD Tube
Оставить отзыв
В избранноеВ сравнение
Артикул: FTSH-105-01-L-DV-K
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Interconnect > Connectors > Headers & PCB Receptacles10 CONTACT(S), MALE, STRAIGHT TWO PART BOARD CONNECTOR, SURFACE MOUNT
| Информация о производителе | |
| Производитель | Samtec |
| Бренд | Samtec |
| Основные | |
| applications | - |
| application: | Board-to-Board, Cable |
| body orientation | Straight |
| connector type | Header, Cuttable |
| contact finish - mating | Gold |
| contact finish thickness - mating | 10.0Вµin(0.25Вµm) |
| contact gender: | Pin(Male) |
| contact material | Phosphor Bronze |
| contact material: | Phosphor Bronze |
| contact plating | Gold |
| contact plating: | Gold |
| contact type | Male Pin |
| current rating | 3.4A |
| current rating: | 3.4 A |
| current rating (amps) | 3.4A per Contact |
| Дата загрузки | 24.03.2024 |
| factory pack quantity: factory pack quantity: | 92 |
| fastening type | Push-Pull |
| features | Keying Shroud |
| flammability rating: | UL 94 V-0 |
| housing colour: | Black |
| housing material: | Liquid Crystal Polymer(LCP) |
| ingress protection | - |
| insulation color | Black |
| insulation height | 0.099"(2.51mm) |
| insulation material | Liquid Crystal Polymer(LCP) |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Samtec Inc. |
| manufacturer: | Samtec |
| material flammability rating | UL94 V-0 |
| maximum operating temperature: | +125 C |
| minimum operating temperature: | -55 C |
| mounting angle: | Straight |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of contacts | 10 |
| number of positions | 10 |
| number of positions: | 10 Position |
| number of positions loaded | All |
| number of rows | 2 |
| number of rows: | 2 Row |
| operating temperature | -55В°C ~ 125В°C |
| packaging | Tape & Reel(TR) |
| packaging: | Tube |
| партномер | 8003210188 |
| part status | active |
| pitch | 1.27mm |
| pitch: | 1.27 mm |
| product: | Headers |
| product category: | Headers & Wire Housings |
| product type: | Headers & Wire Housings |
| row spacing: | 1.27 mm |
| series | FTSH |
| series: | FTSH |
| shrouded/unshrouded | Unshrouded |
| style | Board to Board or Cable |
| subcategory: | Headers & Wire Housings |
| termination | Solder |
| termination method | Solder |
| termination style: | Solder |
| type: | Pin Strip |
| вес, г | 0.54 |
| voltage rating | - |
| Время загрузки | 16:36:59 |
