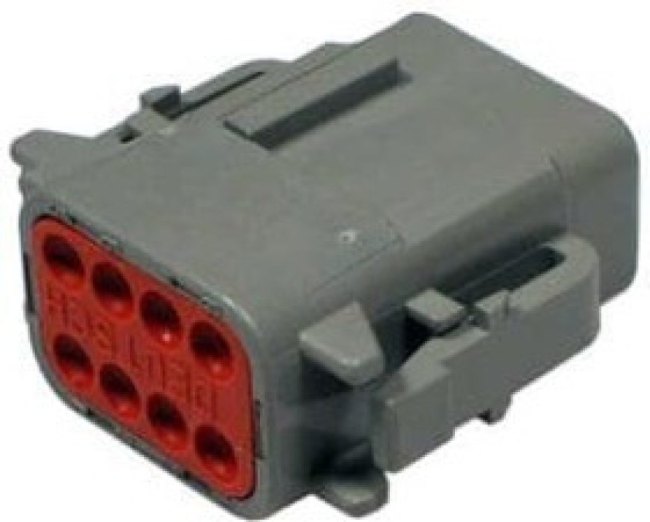

DTM06-08SA, Automotive Connectors 8P DTM PLUG ASM KEY A

Оставить отзыв
В избранноеВ сравнение
Артикул: DTM06-08SA
Кнопки, переключатели, разъемы, реле Разъемы Штыревые и гнезда TE Connectivity DTM06-08SA, Automotive Connectors 8P DTM PLUG ...
TE Connectivity
Информация о производителе
ПроизводительTE Connectivity
БрендTE Connectivity
Основные
application:Wire to Wire
960
- +
Бонус: 19.2 !
Бонусная программа
Итого: 960
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\Automotive ConnectorsIndustrial & Commercial Transportation TE Connectivity's (TE) comprehensive line of Industrial & Commercial Transportation products includes an unparalleled portfolio of rugged electrical connector products and sensor technologies. TE"s environmentally sealed connectors are designed to withstand the harshest environmental conditions and to keep vehicles moving forward. TE's portfolio of heavy-duty sensors helps vehicles operate safer, cleaner, and smarter. Applications range from heavy-duty trucks to construction equipment, mining vehicles to fire trucks, as well as boats, motorcycles, and tractors.
Информация о производителе
ПроизводительTE Connectivity
БрендTE Connectivity
Основные
application:Wire to Wire
body materialPA GF
color:Gray
contact gender:Without Socket Contacts
current rating:7.5 A
Дата загрузки26.03.2024
factory pack quantity: factory pack quantity:1
gender:Plug(Male)
height31.62 mm
housing material:Polyamide(PA)
ingress protectionIP68, IP6K9K
категорияКнопки, переключатели, разъемы, реле/Разъемы
length30.1 mm
locking mechanism:Integrated in Housing
manufacturer:TE Connectivity
material:Plastic
maximum operating temperature:+125 C
minimum operating temperature:-55 C
mounting angle:Straight
mounting featureWithout
mounting style:Cable Mount/Free Hanging
number of positions8
number of positions:8 Position
number of rows2
number of rows:2 Row
operating temperature (max)125 °C
operating temperature range-55-125 °C
operating voltage250 VAC
packaging:Bulk
партномер8004924111
part # aliases:DTM06-08SA-AS ZPF000000000130399
pitch:4.19 mm
product:Connectors
product category:Automotive Connectors
product type:Automotive Connectors
series:DTM
subcategory:Automotive Connectors
termination style:Crimp
tradename:DT
type:8-Way
вес, г07.06.2024
voltage rating:250 V
Время загрузки0:49:34
width15.24 mm
wire gauge max:16 AWG
wire gauge min:22 AWG
wire gauge range:16 AWG to 20 AWG
