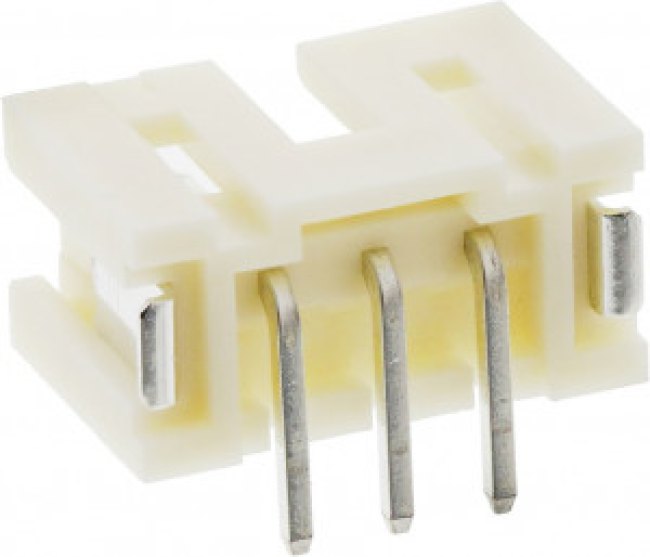

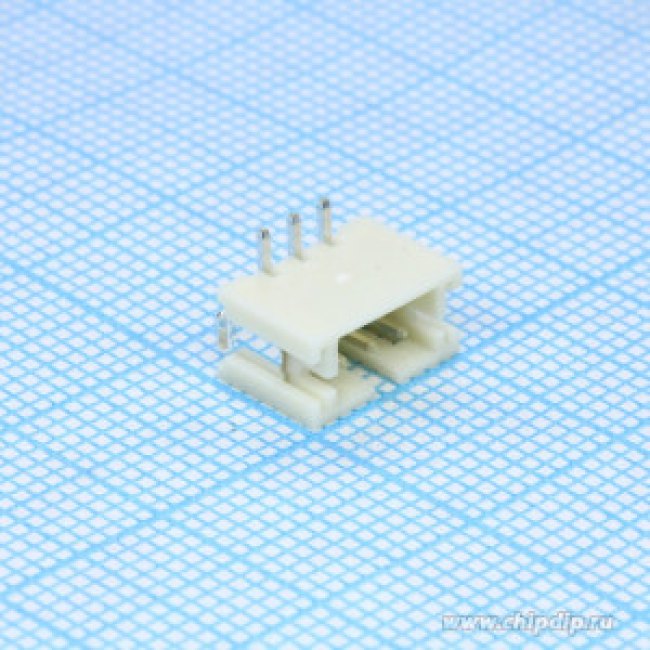

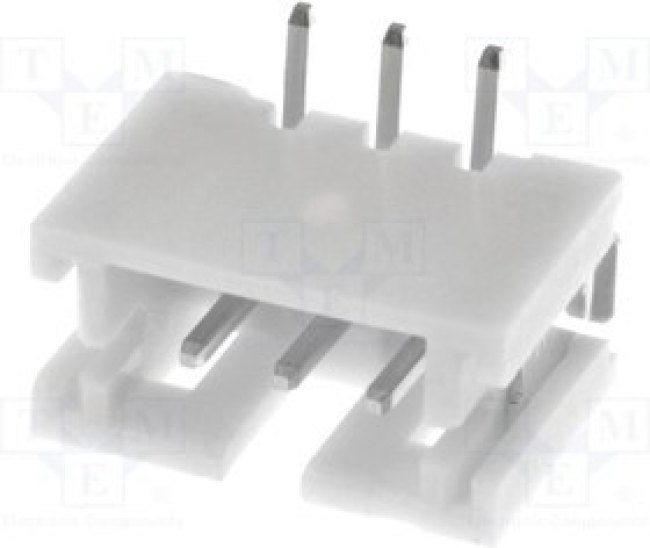

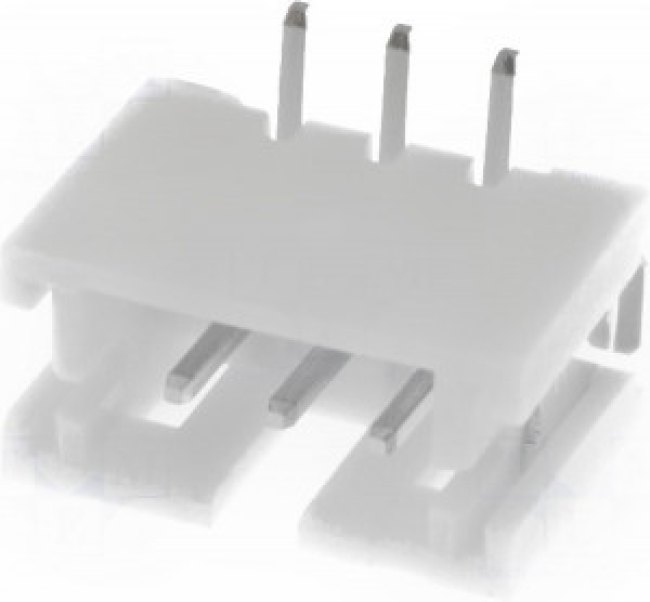

B3B-PH-SM4-TB[LF][SN]

Разъёмы и соединителиCONNECTOR, HEADER, SMT, 2MM, 3WAY; Pitch Spacing:2mm; No. of Contacts:3Contacts; Gender:Header; Product Range:PH Series; Contact Termination Type:Surface Mount; No. of Rows:1Rows; Contact Plating:Tin Plated Contacts; Contact Material:Brass; SVHC:No SVHC (27-Jun-2018); Approval Bodies:CSA, TUV, UL; Colour:White; Contact Resistance Max:10mohm; Current Rating:2A; Flammability Rating:UL94V-0; Insulation Resistance:1000Mohm; Operating Temperature Max:85°C; Operating Temperature Min:-25°C; Voltage Rating VAC:100V; Working Voltage:100V
