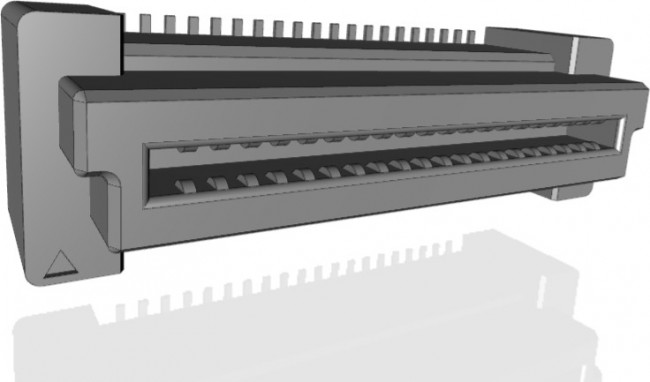

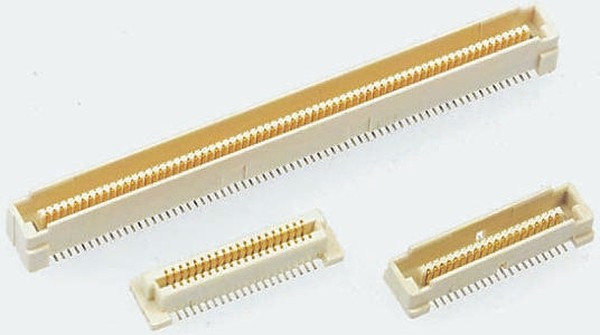

5-5179009-1

ЭлектроэлементSOCKET, VERTICAL, 0.8MM, 7.75MM, 40WAY; Product Range:Fine Stack Series; No. of Contacts:40Contacts; Gender:Receptacle; Pitch Spacing:0.8mm; Contact Termination Type:Surface Mount; No. of Rows:2Rows; Row Pitch:-; Contact Plating:Gold Plated Contacts; Contact Material:Beryllium Copper; SVHC:No SVHC (15-Jan-2018); Contact Termination:Surface Mount Vertical; Current Rating:0.5A; External Length / Height:9mm; Flammability Rating:UL94V-0; Height:9mm; Insulator Material:Thermoplastic; Lead Spacing:0.8mm; Operating Temperature Max:85В°C; Operating Temperature Min:-40В°C; Voltage Rating VAC:100V
