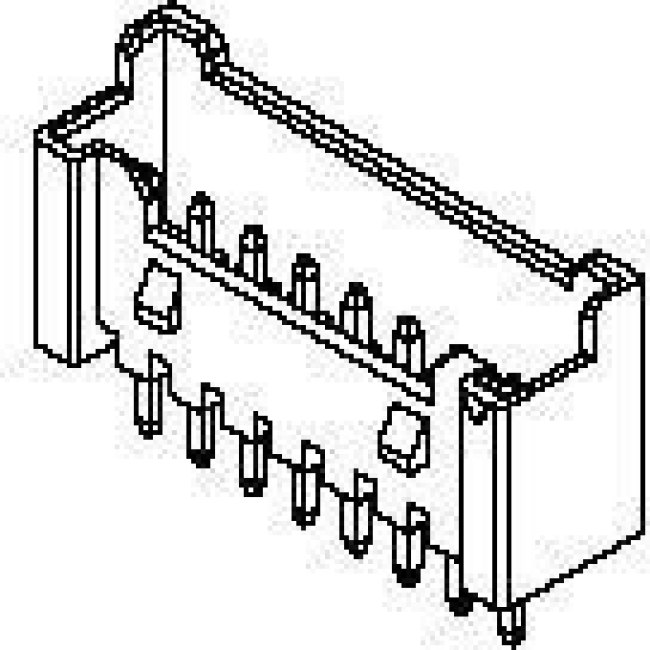

35362-0550, Conn Shrouded Header (4 Sides) HDR 5 POS 2mm Solder ST Top Entry Thru-Hole Sherlock Bag (35362-0550) — купить

Кнопки, переключатели, разъемы, реле Разъемы Штыревые и гнезда Molex 35362-0550, Conn Shrouded Header (4 Sides) ...

Подробное описание

51 ₽

- +

Бонус: 1.02 !

Бонусная программа

Итого: 51 ₽

Купить

The Sherlock Connector System from Molex is for use in applications where secure mating is an important consideration.

Информация о производителе
Производитель	Molex
Бренд	Molex
Основные
application:	Wire-to-Board, Signal
body orientation	Straight
connector type	Header
contact gender:	Pin(Male)
contact material	Brass
contact material:	Tin
contact plating	Tin
contact plating:	Tin
contact type	Male Pin
current rating	2.0A
current rating:	2 A
current rating (amps)	-
Дата загрузки	21.03.2024
factory pack quantity: factory pack quantity:	1000
fastening type	Locking Ramp
features	-
flammability rating:	UL 94 V-0
housing material:	Nylon
категория	Кнопки, переключатели, разъемы, реле/Разъемы
manufacturer	Molex
manufacturer:	Molex
maximum operating temperature:	+105 C
minimum operating temperature:	-40 C
mounting angle:	Straight
mounting style:	Through Hole
mounting type	Through Hole
number of contacts	5
number of positions	5
number of positions:	5 Position
number of rows	1
number of rows:	1 Row
operating temperature	-40В°C ~ 105В°C
packaging	Bulk
packaging:	Bulk
партномер	8002117680
part # aliases:	353620550
pitch	2.0mm
pitch:	2 mm
product:	Headers
product category:	Headers & Wire Housings
product type:	Headers & Wire Housings
series	Sherlock 35362
series:	35362
shrouded/unshrouded	Shrouded
style	Board to Cable/Wire
subcategory:	Headers & Wire Housings
termination	Kinked Pin, Solder
termination method	Solder
termination style:	Solder Pin
tradename:	Sherlock
type:	Shrouded
voltage rating	125V
voltage rating:	125 V
