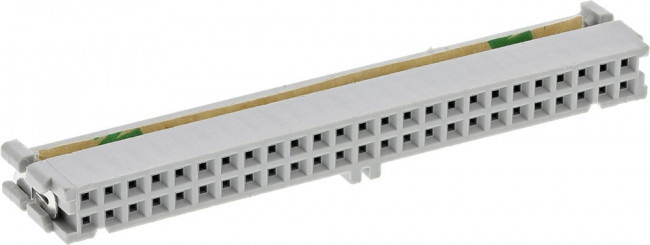

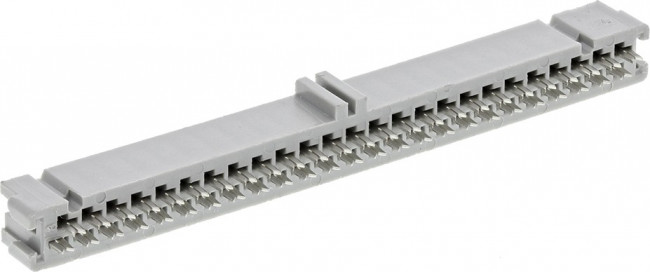

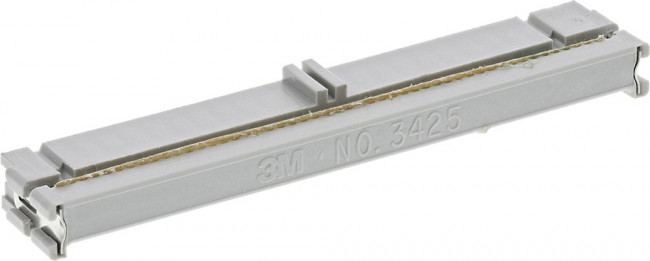

Name: 3425-6600, Ribbon Cable Connector, Socket, Straight, Contacts - 50, 2.54mm
Brand: 3M
SKU: 3425-6600

Кнопки, переключатели, разъемы, реле Разъемы Штыревые и гнезда 3M 3425-6600, Ribbon Cable Connector, Socket ...

Подробное описание

1 870 ₽

– +

Бонус: 37.4 !

Бонусная программа

Итого: 1 870 ₽

Купить

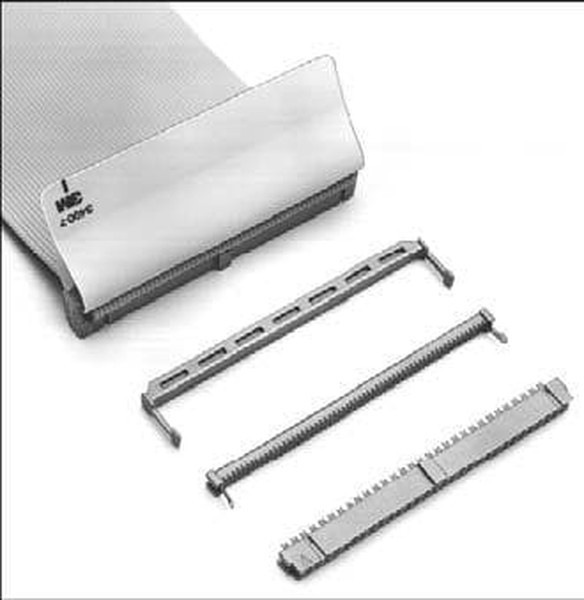

Flat Cable Connectors3000 series cable mount industry standard IDC ribbon cable socket connectors with a 2.54 x 2.54 mm pitch.

Информация о производителе
Производитель	3M
Бренд	3M
Основные
color	Grey
connector type	IDC, Receptacle, Socket
contact current rating	1 A
contact gender	Female
contact gender:	Socket(Female)
contact material	Copper
contact material:	Copper Alloy
contact plating	Gold
contact plating:	Gold
contact resistance	20 mΩ
current rating	1 A
current rating:	1 A
Дата загрузки	26.03.2024
factory pack quantity: factory pack quantity:	180
flammability rating	UL94 V-0
flammability rating:	UL 94 V-0
gender	Female
hole diameter	890 µm
housing color	Grey
housing material	Polybutylene
housing material:	Polybutylene Terephthalate(PBT)
insulation resistance	1 GΩ
категория	Кнопки, переключатели, разъемы, реле/Разъемы
latching type:	Unlatched
lead pitch	2.54 mm
manufacturer:	3M
material	Glass, PBT, Polyester
maximum operating temperature:	+105 C
minimum operating temperature:	-55 C
mounting angle:	Straight
mounting style:	Cable Mount/Free Hanging
number of contacts	50
number of poles	50
number of positions	50
number of positions:	50 Position
number of rows	2
number of rows:	2 Row
orientation	Right Angle
партномер	8004369772
part # aliases:	5,40073E+19
pitch	2.54 mm
pitch:	2.54 mm
product:	Headers
product category:	Headers & Wire Housings
product type:	Headers & Wire Housings
row spacing	2.54 mm
row spacing:	2.54 mm
series:	3000
subcategory:	Headers & Wire Housings
termination	IDT
termination style:	IDC
type:	Socket
вес, г	10
Время загрузки	1:15:23
working voltage	350 V
