22-55-2102, Housing, Receptacle, Poles - 10, Rows - 2 (22-55-2102) — купить | ООО «Телеметрия»

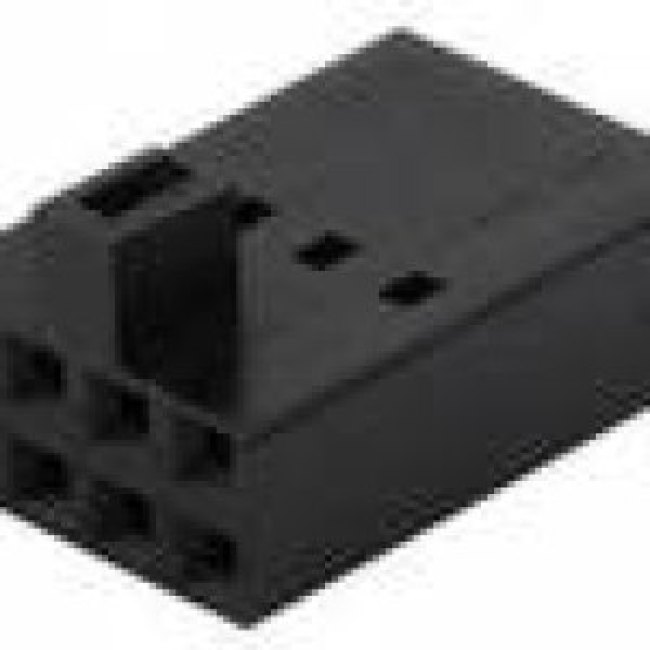

22-55-2102, Housing, Receptacle, Poles - 10, Rows - 2

Оставить отзыв
В избранноеВ сравнение
Артикул: 22-55-2102
Кнопки, переключатели, разъемы, реле Разъемы Штыревые и гнезда Molex 22-55-2102, Housing, Receptacle, Poles - 10 ...
Информация о производителе
ПроизводительMolex
БрендMolex
Основные
application:Wire-to-Board, Signal
270
- +
Бонус: 5.4 !
Бонусная программа
Итого: 270
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Flat Cable ConnectorsThe SL 70450 series crimp housings are designed to be used in signal or wire-to-board applications. SL is designed for high density applications and offers design flexibility and automated harness-making capabilities when combined with the SL series tooling.
Информация о производителе
ПроизводительMolex
БрендMolex
Основные
application:Wire-to-Board, Signal
body orientationStraight
contact gender:Socket(Female)
contact type:Socket(Female)
Дата загрузки24.03.2024
factory pack quantity: factory pack quantity:500
flammability rating:UL 94 V-0
for use with70058, 71851
genderFemale
housing materialGlass-Filled PET
housing material:Polyester
категорияКнопки, переключатели, разъемы, реле/Разъемы
manufacturer:Molex
maximum operating temperature:+105 C
minimum operating temperature:-40 C
mounting style:Cable Mount/Free Hanging
mounting typeCable Mount
number of contacts10
number of positions:10 Position
number of rows2
number of rows:2 Row
packaging:Bulk
партномер8004458985
part # aliases:22552102 70450-0053 22-55-2102-PB 0022552102
pitch2.54mm
pitch:2.54 mm
product:Wire Housings
product category:Headers & Wire Housings
product type:Headers & Wire Housings
seriesSL
series:70450
subcategory:Headers & Wire Housings
termination style:Crimp
tradename:SL
type:Receptacle Housings
вес, г0.9
Время загрузки16:38:29
width15.24mm
