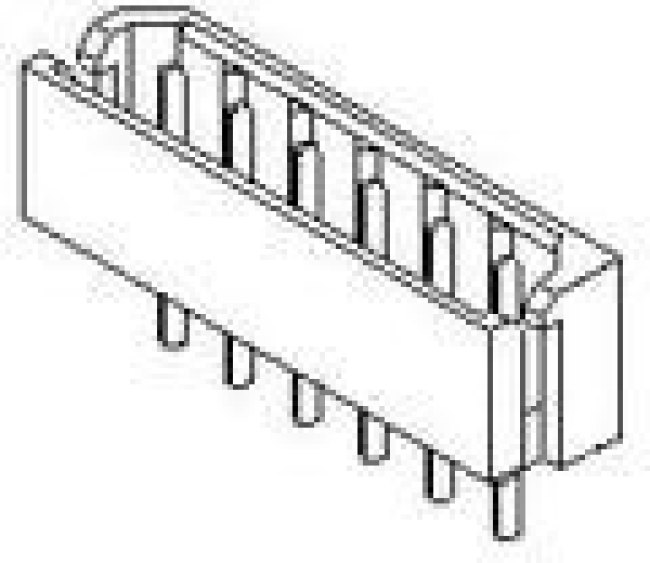

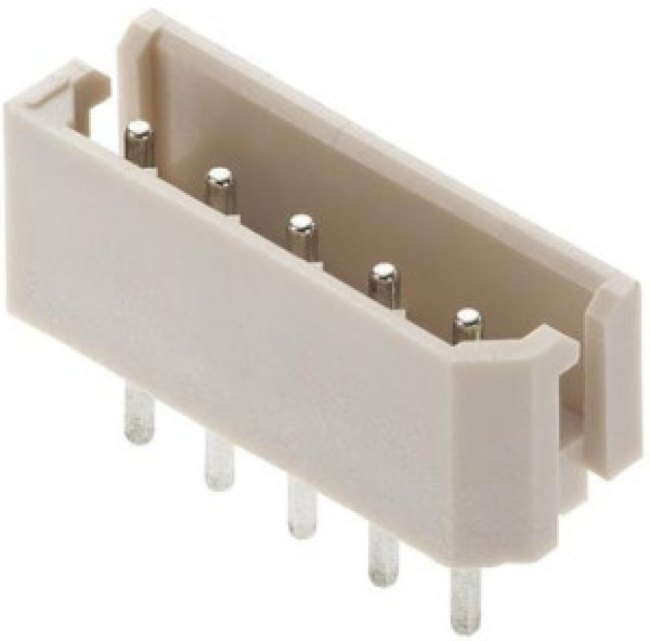

0022035055, Conn Shrouded Header (4 Sides) HDR 5 POS 2.5mm Solder ST Top Entry Thru-Hole Mini-SPOX Bag
Оставить отзыв
В избранноеВ сравнение
Артикул: 22035055
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Interconnect > Connectors > Headers & PCB ReceptaclesConn Shrouded Header (4 Sides) HDR 5 POS 2.5mm Solder ST Top Entry Thru-Hole Mini-SPOX Bag
| Информация о производителе | |
| Производитель | Molex |
| Бренд | Molex |
| Основные | |
| applications | Automotive, General Purpose, Industrial, Medical, Telecommunications |
| application: | Wire-to-Board, Signal |
| automotive | No |
| body orientation | Straight |
| connector type | Header |
| contact finish - mating | Tin |
| contact finish thickness - mating | - |
| contact gender: | Pin(Male) |
| contact material | Brass |
| contact material: | Tin |
| contact plating | Tin |
| contact plating: | Tin |
| contact type | Male Pin |
| current rating: | 3 A |
| current rating (amps) | - |
| Дата загрузки | 21.03.2024 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 15000 |
| fastening type | Detent Lock |
| features | - |
| flammability rating: | UL 94 V-0 |
| gender | HDR |
| housing material: | Nylon |
| ingress protection | - |
| insulation color | - |
| insulation height | 0.232"(5.90mm) |
| insulation material | Polyamide(PA66), Nylon 6/6, Glass Filled |
| insulation resistance (mohm) | 1000 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Molex |
| manufacturer: | Molex |
| material flammability rating | UL94 V-0 |
| mating cycle (cycles) | 30 |
| maximum contact resistance (mohm) | 20 |
| maximum current rating (a) | 3/Contact |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum voltage rating | 250V |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | Through Hole |
| mounting angle: | Straight |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of contacts | 5 |
| number of positions | 5 |
| number of positions: | 5 Position |
| number of positions loaded | All |
| number of rows | 1 |
| number of rows: | 1 Row |
| operating temperature | - |
| packaging | Bag |
| packaging: | Bulk |
| партномер | 8003207198 |
| part # aliases: | 22035055 5267-05A 0022035055 |
| part status | active |
| pitch | 2.5mm |
| pitch: | 2.5 mm |
| polarization type | Dual Slot |
| ppap | No |
| product: | Headers |
| product category: | Headers & Wire Housings |
| product type: | Headers & Wire Housings |
| series | Mini-SPOX 5267 |
| series: | 5267 |
| shrouded/unshrouded | Shrouded |
| style | Board to Cable/Wire |
| subcategory: | Headers & Wire Housings |
| terminal pitch (mm) | 02.05.2023 |
| termination | Solder |
| termination method | Solder |
| termination style: | Solder Pin |
| tradename | Mini-SPOX |
| tradename: | Mini-SPOX |
| type | Shrouded Header(4 Sides) |
| type: | Shrouded |
| voltage rating | - |
| voltage rating: | 250 V |
| Время загрузки | 21:48:22 |
