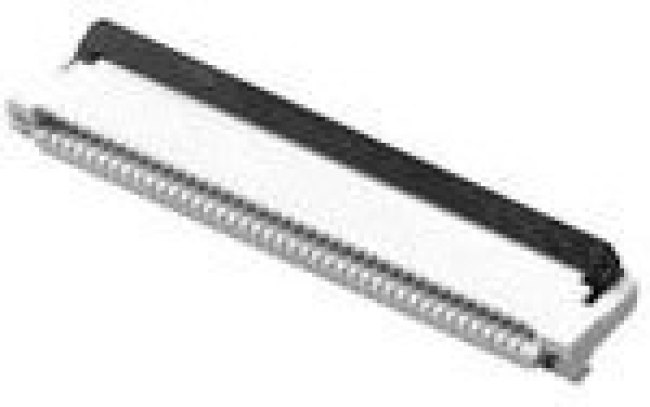

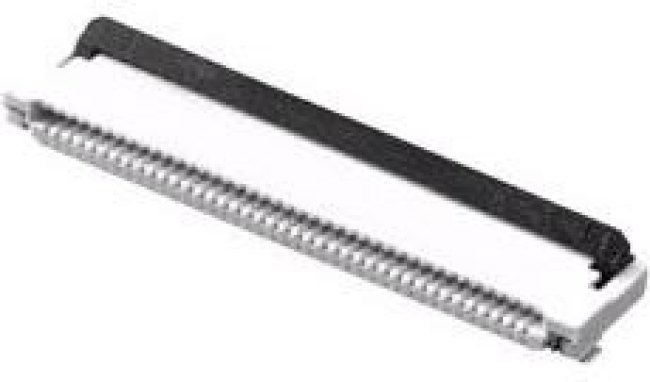

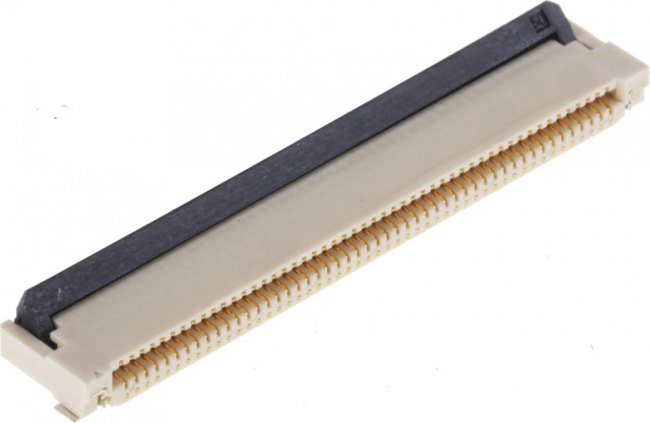

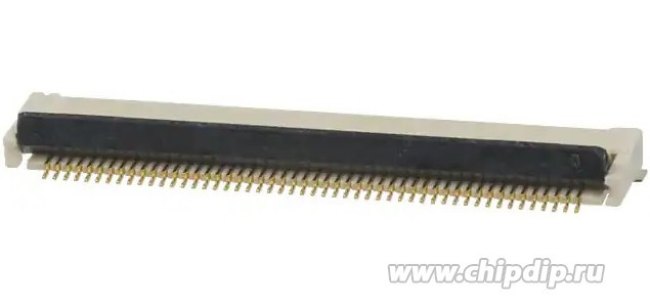

XF2M-5015-1A
Оставить отзыв
В избранноеВ сравнение
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
ЭлектроэлементFFC/FPC CONNECTOR, RECEPTACLE 50 POSITION 1ROW, FULL REEL, Pitch Spacing:0.5mm, No. of Contacts:50Contacts, Gender:Receptacle, Product Range:XF Series, Contact Termination Type:Surface Mount, Contact Position:Top, Bottom , RoHS Compliant: Yes
| Информация о производителе | |
| Производитель | Omron |
| Бренд | Omron |
| Основные | |
| actuator color | Black |
| actuator material | Liquid Crystal Polymer(LCP), Halogen Free |
| automotive | No |
| body orientation | Right Angle |
| contact finish | Gold |
| contact finish thickness | 5.90Вµin(0.150Вµm) |
| contact gender | SKT |
| contact location: | Dual Contact |
| contact material | Copper Alloy |
| contact material: | Spring Copper Alloy/Nickel Substrate |
| contact plating | Gold Over Nickel |
| contact plating: | Gold |
| current rating | 500mA |
| current rating: | 500 mA |
| current rating (amps) | 0.5A |
| Дата загрузки | 29.03.2024 |
| dielectric material | Liquid Crystal Polymer(LCP), Halogen Free |
| eccn (us) | ear99 |
| factory pack quantity: factory pack quantity: | 1500 |
| features | - |
| ffc, fcb thickness | 0.30mm |
| gender | Female |
| height above board | 0.083"(2.10mm) |
| housing color | Natural |
| housing material | Liquid Crystal Polymer |
| housing material: | Liquid Crystal Polymer(LCP) |
| insulation resistance (mohm) | 100 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| кол-во в упаковке | 1500 |
| locking feature | Rotary Lock, Backlock |
| locking mechanism | Yes |
| manufacturer | Omron Electronics Inc-EMC Div |
| manufacturer: | Omron |
| material flammability rating | UL94 V-0 |
| mating cycles | 20 |
| mating cycle (cycles) | 20 |
| maximum contact resistance (mohm) | 50 |
| maximum current rating (a) | 0.5 |
| maximum operating temperature | +85°C |
| maximum operating temperature: | +85 C |
| maximum operating temperature (°c) | 85 |
| maximum voltage rating | 50VDC|50VAC |
| minimum operating temperature | -30°C |
| minimum operating temperature: | -30 C |
| minimum operating temperature (°c) | -30 |
| mounting | surface mount |
| mounting angle: | Right Angle |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount, Right Angle |
| number of contacts | 50 |
| number of positions | 50 |
| number of positions: | 50 Position |
| number of rows | 1 |
| operating temperature | -30В°C ~ 85В°C |
| packaging | Cut Tape(CT) |
| партномер | 8001983189 |
| part # aliases: | XF2M50151A |
| part status | active |
| pitch | 0.020"(0.50mm) |
| pitch: | 0.5 mm |
| ppap | No |
| product: | Board Mount |
| product category: | FFC & FPC Connectors |
| product type: | FFC & FPC Connectors |
| series | XF2M |
| series: | XF2M |
| subcategory: | FFC & FPC Connectors |
| terminal pitch (mm) | 0.5 |
| termination | Solder |
| termination method | Solder |
| termination style: | SMD/SMT |
| termination type | Top and Bottom Contact |
| type | FFC/FPC Connector |
| вес, г | 0.831 |
| voltage rating | 50V |
| voltage rating: | 50 V |
| Время загрузки | 12:27:08 |
