SLPRB35CPSO, Conn Power RCP 1 POS Screw ST Panel Mount 1 Terminal 1 Port (SLPRB35CPSO) — купить | ООО «Телеметрия»

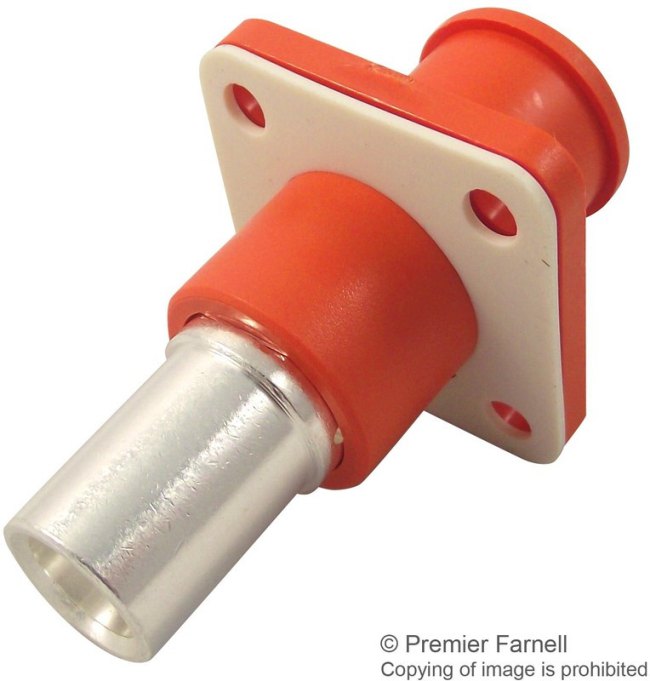

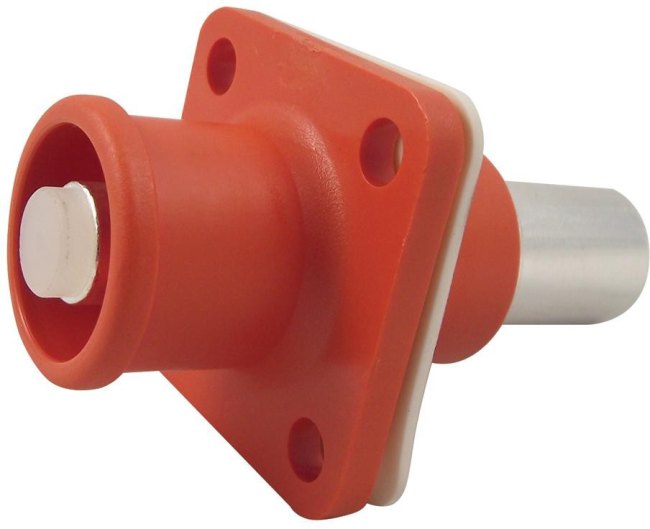

SLPRB35CPSO, Conn Power RCP 1 POS Screw ST Panel Mount 1 Terminal 1 Port

Оставить отзыв
В избранноеВ сравнение
Артикул: SLPRB35CPSO
Кнопки, переключатели, разъемы, реле Разъемы Питания Amphenol SLPRB35CPSO, Conn Power RCP 1 POS Screw ST ...
Amphenol
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
contact gender:Socket(Female)
2 310
- +
Бонус: 46.2 !
Бонусная программа
Итого: 2 310
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Interconnect > Connectors > Power ConnectorSurLok Plus™ Heavy-Duty Power ConnectorsAmphenol Industrial SurLok Plus™ Heavy-Duty Power Connectors are IP67-rated, field installable, highly reliable connectors offering industry-standard crimp, screw, and busbar termination options. There is no need for special torque tools. The SurLok components feature a quick-lock and press-to-release function and a "keyway" design to prevent incorrect mating. Amphenol SurLok Plus Connectors incorporate the R4 RADSOK ® technology. This technology utilizes the high tensile strength properties and forms a high-conductivity alloy grid to produce low insertion forces while maintaining a large conductive surface area.
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
contact gender:Socket(Female)
contact material:Copper Alloy
current rating:200 A
Дата загрузки30.03.2024
factory pack quantity: factory pack quantity:100
flammability rating:UL 94 V-0
housing material:Thermoplastic(TP)
ip rating:IP67
категорияКнопки, переключатели, разъемы, реле/Разъемы
линейка продукцииSurLok Plus
manufacturer:Amphenol
maximum operating temperature:+125 C
minimum operating temperature:-40 C
монтаж разъемаМонтаж в Панель
mounting angle:Straight
mounting style:Panel
number of positions:1 Position
партномер8003332100
part # aliases:C10-730189-030
product:Receptacles
product category:Heavy Duty Power Connectors
product type:Heavy Duty Power Connectors
series:Surlok
subcategory:Power Connectors
termination style:Crimp
тип электрического разъемаГнездо
тип оконцовки контактаОбжим
ток150А
tradename:SurLok Plus
voltage rating:1 kV
Время загрузки21:26:17
wire gauge max:2 AWG
