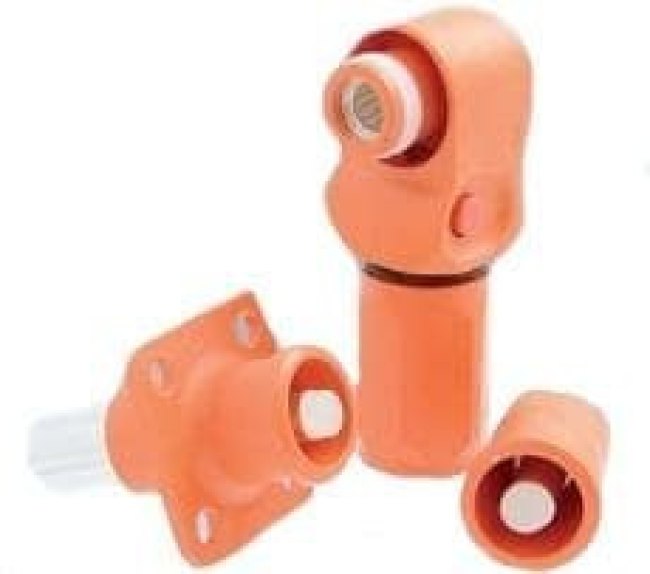

SLPIPB35BSB1, Heavy Duty Power Connectors 8.0MM SL+ PLUG Seal 35mm sq, black

Оставить отзыв
В избранноеВ сравнение
Артикул: SLPIPB35BSB1
Кнопки, переключатели, разъемы, реле Разъемы Питания Amphenol SLPIPB35BSB1, Heavy Duty Power Connectors ...
Amphenol
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
base product numberSLPIPB35 ->
8 180
- +
Бонус: 163.6 !
Бонусная программа
Итого: 8 180
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\Power Connectors\Heavy Duty Power ConnectorsSurLok Plus™ Heavy-Duty Power ConnectorsAmphenol Industrial SurLok Plus™ Heavy-Duty Power Connectors are IP67-rated, field installable, highly reliable connectors offering industry-standard crimp, screw, and busbar termination options. There is no need for special torque tools. The SurLok components feature a quick-lock and press-to-release function and a "keyway" design to prevent incorrect mating. Amphenol SurLok Plus Connectors incorporate the R4 RADSOK ® technology. This technology utilizes the high tensile strength properties and forms a high-conductivity alloy grid to produce low insertion forces while maintaining a large conductive surface area.
Информация о производителе
ПроизводительAmphenol
БрендAmphenol
Основные
base product numberSLPIPB35 ->
colorBlack
contact material:Copper Alloy
current rating:150 A
Дата загрузки30.03.2024
eccnEAR99
factory pack quantity: factory pack quantity:100
housing material:Thermoplastic(TP)
htsus8536.90.4000
ip rating:IP67
категорияКнопки, переключатели, разъемы, реле/Разъемы
manufacturer:Amphenol
moisture sensitivity level (msl)Not Applicable
number of positions:1 Position
packageBulk
партномер8005146315
part # aliases:C10-731951-101
product:Plugs
product category:Heavy Duty Power Connectors
product type:Heavy Duty Power Connectors
rohs statusRoHS Compliant
series:Surlok
subcategory:Power Connectors
terminal typeMale, Pin (Plug)
terminationCrimp
termination style:Crimp
tradename:SurLok Plus
voltage rating:1 kV
Время загрузки20:23:12
wire gauge2 AWG
wire gauge max:2 AWG
