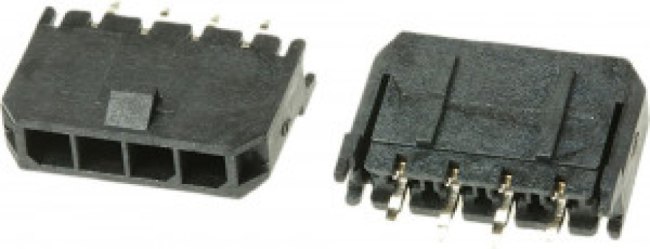

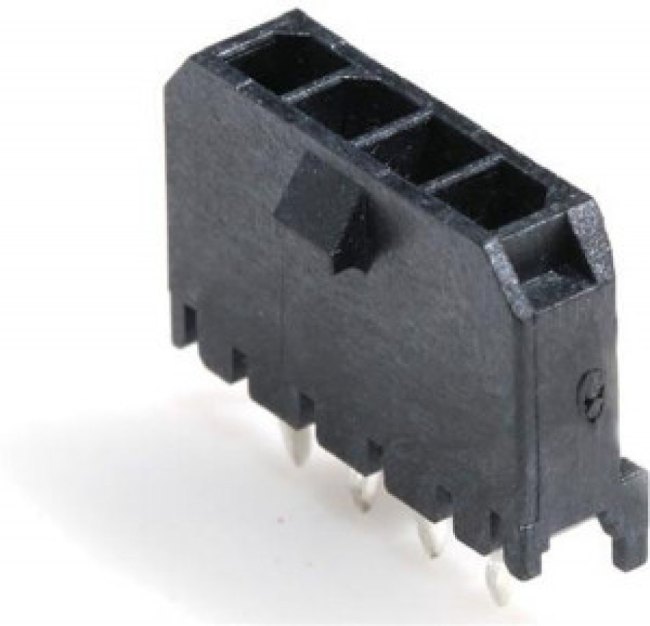

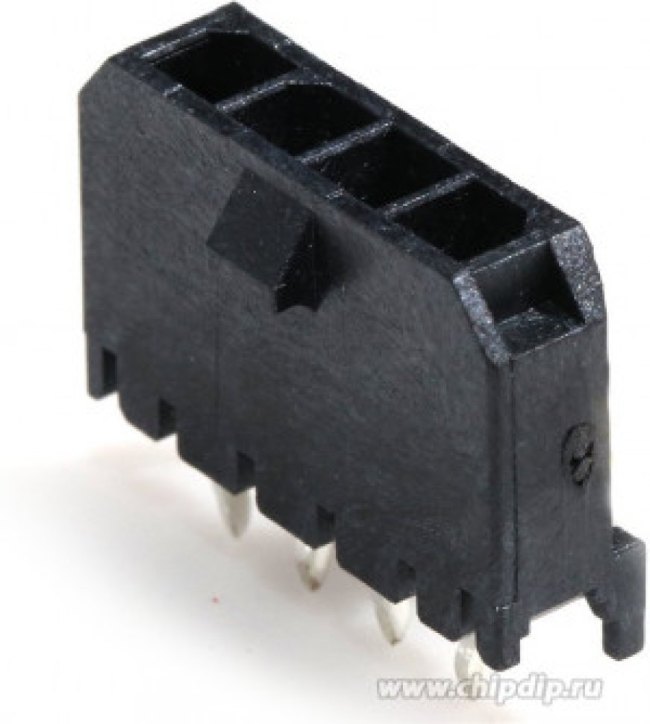

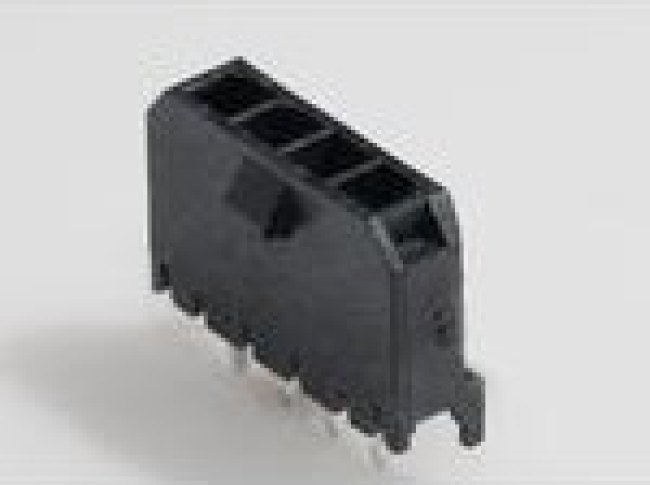

Разъём питания низковольтный 436500415
Оставить отзыв
В избранноеВ сравнение
Артикул: 436500415
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Разъемы\Разъёмы питания низковольтныеIndustrial SolutionsMolex Industrial Solutions are designed for the harshest environmental conditions to provide safe and reliable connections. Molex Industrial Solutions also offer protection from contamination, moisture, or vibration.
| Информация о производителе | |
| Производитель | Molex |
| Бренд | Molex |
| Основные | |
| applications | General Purpose, Medical, Military, Telecommunications |
| application: | Wire-to-Board, Power |
| body orientation | Straight |
| connector type | Header |
| contact finish - mating | Tin |
| contact finish thickness - mating | 100.0Вµin(2.54Вµm) |
| contact gender: | Pin(Male) |
| contact material | Brass |
| contact material: | Tin |
| contact plating | Tin |
| contact plating: | Tin |
| contact plating thickness | 2.5um |
| contact type | Male Pin |
| current rating | - |
| current rating: | 8.5 A |
| Дата загрузки | 28.03.2024 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 120 |
| fastening type | Locking Ramp |
| features | Board Guide |
| flammability rating: | UL 94 V-0 |
| gender | HDR |
| housing colour: | Black |
| housing material: | Thermoplastic(TP) |
| hts | 8536.69.40.40 |
| ingress protection | - |
| insulation color | Black |
| insulation height | 0.390"(9.91mm) |
| insulation material | Liquid Crystal Polymer(LCP), Glass Filled |
| insulation resistance (mohm) | 1000 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Molex |
| manufacturer: | Molex |
| material flammability rating | UL94 V-0 |
| mating cycle (cycles) | 30 |
| maximum contact resistance (mohm) | 10 |
| maximum current rating (a) | 8.5/Contact |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum voltage rating | 600V |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | Through Hole |
| mounting angle: | Straight |
| mounting style: | Through Hole |
| mounting type | Through Hole |
| number of contacts | 4 |
| number of positions | 4 |
| number of positions: | 4 Position |
| number of positions loaded | All |
| number of rows | 1 |
| number of rows: | 1 Row |
| operating temperature | - |
| packaging | Tray |
| packaging: | Tray |
| партномер | 8027863329 |
| part # aliases: | 436500415 |
| part status | active |
| pitch | 3.0mm |
| pitch: | 3 mm |
| polarization type | Center Key |
| product: | Headers |
| product category: | Headers & Wire Housings |
| product depth (mm) | 5.57 |
| product height (mm) | 09.09.2024 |
| product length (mm) | 15.65 |
| product type: | Headers & Wire Housings |
| product weight (g) | 0.736 |
| series | Micro-Fit 3 43650 |
| series: | 43650 |
| series number | 43650 |
| shrouded/unshrouded | Shrouded |
| style | Board to Cable/Wire |
| subcategory: | Headers & Wire Housings |
| tail length (mm) | 3.18 |
| terminal pitch (mm) | 3 |
| termination | Kinked Pin, Solder |
| termination method | Solder |
| termination style: | Solder Pin |
| tradename | Micro-Fit 3.0™ |
| tradename: | Micro-Fit 3 |
| type | Wire to Board |
| type: | Shrouded |
| вес, г | 01.01.2024 |
| voltage rating | - |
| voltage rating: | 600 V |
| Время загрузки | 22:17:35 |
