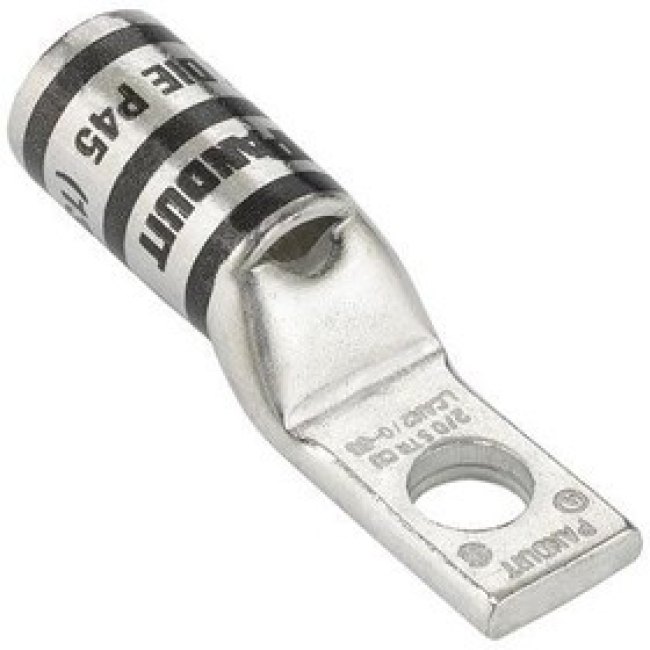

LCAN4/0-56-X, Terminals Copper Comp Lug 1H 4/0 AWG

Оставить отзыв
В избранноеВ сравнение
Артикул: LCAN4/0-56-X
Кнопки, переключатели, разъемы, реле Разъемы Питания Panduit LCAN4/0-56-X, Terminals Copper Comp Lug 1H 4/0 AWG
Информация о производителе
ПроизводительPanduit
БрендPanduit
Основные
colorPurple
4 010
- +
Бонус: 80.2 !
Бонусная программа
Итого: 4 010
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\TerminalsLCAN Copper Compression ConnectorsPanduit LCAN Copper Compression Connectors are marked color-coded barrels for proper crimp die selection. These connectors feature narrow tongue width and an inspection window to assure full conductor insertion visually. The LCAN copper compression connectors are UL listed and CSA certified to 35KV, with a temperature rated to 90°C when crimped.
Информация о производителе
ПроизводительPanduit
БрендPanduit
Основные
colorPurple
contact finishElectro-Tin
contact materialCopper
Дата загрузки30.03.2024
eccnEAR99
factory pack quantity: factory pack quantity:10
htsus8536.90.4000
insulationNon-Insulated
категорияКнопки, переключатели, разъемы, реле/Разъемы
length - overall2.400"" (60.96mm)
manufacturer:Panduit
moisture sensitivity level (msl)Not Applicable
mounting typeFree Hanging (In-Line)
packageBulk
партномер8005076033
product:Terminals
product category:Terminals
product type:Terminals
rohs statusROHS3 Compliant
series:LCAN
stud/tab size5/16 Stud
subcategory:Terminals
tab thickness0.180"" (4.57mm)
terminal typeRectangular Tongue
terminationCrimp, Barrel
termination style:Crimp
tradename:Pan-Lug
вес, г20
Время загрузки19:22:05
width - outer edges0.710"" (18.03mm)
wire gauge4/0 AWG
wire gauge min:4/0 AWG
