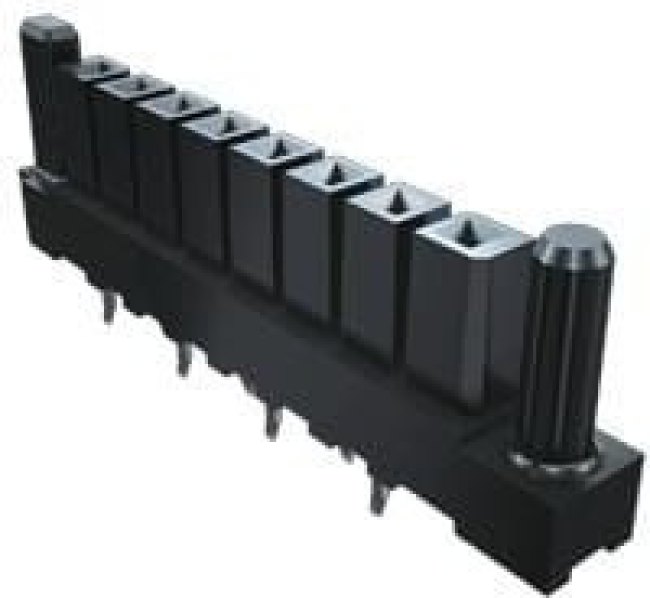

IPBS-108-01-T-D-GP, Power to the Board .165" Power Mate Isolated Power Socket Strip (IPBS-108-01-T-D-GP) — купить

Кнопки, переключатели, разъемы, реле Разъемы Питания Samtec IPBS-108-01-T-D-GP, Power to the Board .165" ...

Подробное описание

1 290 ₽

- +

Бонус: 25.8 !

Бонусная программа

Итого: 1 290 ₽

Купить

Connectors\Power Connectors\Power to the BoardThe Samtec PCB Socket has.165" (4.19 mm) pitch size. It has Vertical through-hole and surface mount.

Информация о производителе
Производитель	Samtec
Бренд	Samtec
Основные
body orientation	Straight
contact gender:	Socket(Female)
contact material:	Phosphor Bronze
contact plating:	Tin
current rating:	10.3 A
Дата загрузки	29.03.2024
factory pack quantity: factory pack quantity:	12
housing material:	Liquid Crystal Polymer(LCP)
категория	Кнопки, переключатели, разъемы, реле/Разъемы
manufacturer:	Samtec
maximum operating temperature:	+105 C
minimum operating temperature:	-55 C
mounting angle:	Straight
mounting style:	Mounting Peg
mounting type	Through Hole
number of contacts	16
number of positions:	16 Position
number of rows	2
packaging:	Tube
партномер	8004757932
pitch	4.2mm
pitch:	4.19 mm
product category:	Power to the Board
product type:	Power to the Board
series	IPBS
series:	IPBS
subcategory:	Power Connectors
termination method	Solder
termination style:	Solder Pin
tradename:	Power Mate
type	Socket
вес, г	2
voltage rating:	400 VAC, 565 VDC
Время загрузки	11:38:45
