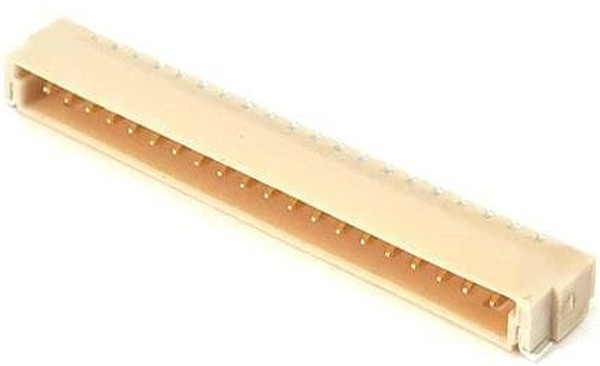

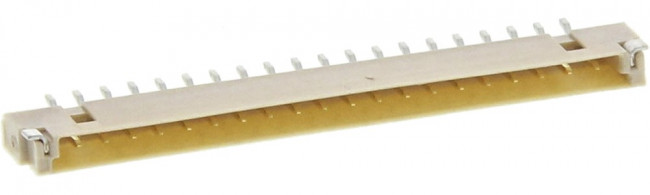

ЭлектроэлементConn; Rect; Board to Cable; Cable Socket; 20 Cont; SMT; FI Series; Shielded; 32-28 AWG
Информация о производителе | |
Производитель | Japan Aviation Electronics Industry |
Бренд | Japan Aviation Electronics Industry |
Основные | |
applications | - |
body orientation | Right Angle |
connector type | Receptacle |
contact finish - mating | Gold |
contact finish thickness - mating | - |
contact material | copper alloy |
contact material: | Copper Alloy |
contact plating: | Gold |
contact type | Male Pin |
current rating | 1A per Contact |
current rating: | 1 A |
Дата загрузки | 30.03.2024 |
factory pack quantity: factory pack quantity: | 294 |
fastening type | Friction Lock |
features | Solder Retention |
gender: | Female |
housing material | Liquid Crystal Polymer |
housing material: | Liquid Crystal Polymer(LCP) |
ingress protection | - |
insulation color | Beige |
insulation height | 0.071"(1.80mm) |
insulation material | Liquid Crystal Polymer(LCP), Glass Filled |
категория | Кнопки, переключатели, разъемы, реле/Разъемы |
manufacturer | JAE Electronics |
manufacturer: | JAE Electronics |
material flammability rating | UL94 V-0 |
maximum operating temperature: | +80 C |
minimum operating temperature: | -40 C |
mounting angle: | Right Angle |
mounting type | Surface Mount, Right Angle |
number of contacts | 20 |
number of positions | 20 |
number of positions: | 20 Position |
number of positions loaded | All |
number of rows | 1 |
operating temperature | -40В°C ~ 80В°C |
packaging | Strip |
партномер | 8002072155 |
part status | Active |
pitch | 1.25mm |
pitch: | 1.25 mm |
product: | Receptacles |
product category: | FFC & FPC Connectors |
product type: | FFC & FPC Connectors |
series | FI |
series: | FI |
style | Board to Cable/Wire |
subcategory: | FFC & FPC Connectors |
termination | Solder |
termination method | Solder |
termination style: | SMD/SMT |
type | Receptacle |
вес, г | 0.25 |
voltage rating | 200V |
Время загрузки | 21:05:18 |
