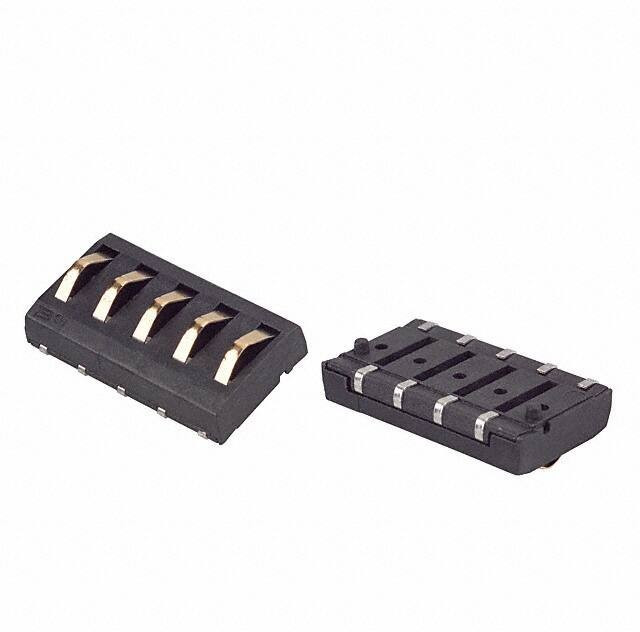

Name: 70ADJ-5-ML1, Conn Modular Contact M 5 POS 4mm Solder ST SMD 5 Terminal 1 Port Tube
Brand: Bourns
SKU: 70ADJ-5-ML1

Кнопки, переключатели, разъемы, реле Разъемы Питания Bourns 70ADJ-5-ML1, Conn Modular Contact M 5 POS 4mm ...

Подробное описание

430 ₽

– +

Бонус: 8.6 !

Бонусная программа

Итого: 430 ₽

Купить

Connectors\I/O Connectors\Connector PowerConn Modular Contact M 5 POS 4mm Solder ST SMD 5 Terminal 1 Port Tube

Информация о производителе
Производитель	Bourns
Бренд	Bourns
Основные
automotive	No
base product number	70ADJ ->
body orientation	Straight
california prop 65	Warning Information
connector type	Compression Contact, Male
contact finish	Gold
contact finish thickness	30.0Вµin (0.76Вµm)
contact material	Copper Alloy
contact plating	Gold Over Nickel
Дата загрузки	29.03.2024
eccn	EAR99
eccn (us)	ear99
eu rohs	compliant
gender	M
htsus	8536.69.4040
insulation resistance (mohm)	500
категория	Кнопки, переключатели, разъемы, реле/Разъемы
material	Copper Alloy
mating cycle (cycles)	5000
maximum contact resistance (mohm)	25
maximum current rating (a)	3/Contact
maximum operating temperature (°c)	125
maximum voltage rating	30VDC
minimum operating temperature (°c)	-55
moisture sensitivity level (msl)	1 (Unlimited)
mounting	surface mount
mounting type	Surface Mount
number of contacts	5
number of ports	1
number of rows	1
number of terminals	5
package	Tube
packaging	Tube
партномер	8001010258
part status	active
pitch	0.157"" (4.00mm)
ppap	No
reach status	REACH Unaffected
rohs status	ROHS3 Compliant
terminal pitch (mm)	4
termination method	Solder
type	MODULAR CONTACT
Время загрузки	12:22:23
