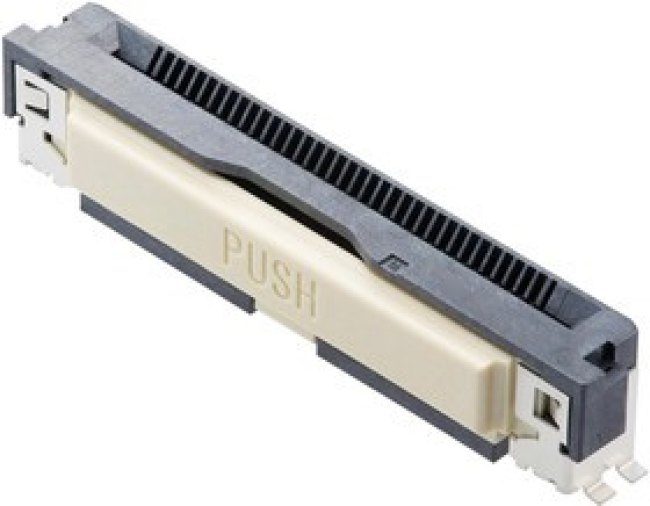

200485-0440, FFC & FPC Connectors .50mm Easy-On One TouchRA 40Ckt

200485 series easy-On FFC/FPC one-touch connectors feature single step mating with an auto lock-nail mechanism and high retention force a for quick and reliable connection and easy operation, making these connectors ideal for many industries. A wide FFC/FPC mouth helps in easy insertion and auto-lock assembly line benefits the customer manufacturing line. Typical applications include connected home / home appliance, automotive data/computing, consumer, industrial and industrial automation. • Right angle connector with one-touch insertion operation• Lock-nail system ensures FFC/FPC cable connection by high retention force• Operating temperature range from -40 to +105˚C• Visible release button eases FFC/FPC cable release operation• Ground terminal (optional) provides superior signal integrity• Selective gold plating on signal terminal prevents solder wicking for SMT solder tail• UL file number UL94V-0• Mates with FFC/FPC• Voltage (max) is 50V, current (max) is 0.5A, durability (min) is 20 cycles• LCP housing, LCP button and copper alloy contact
