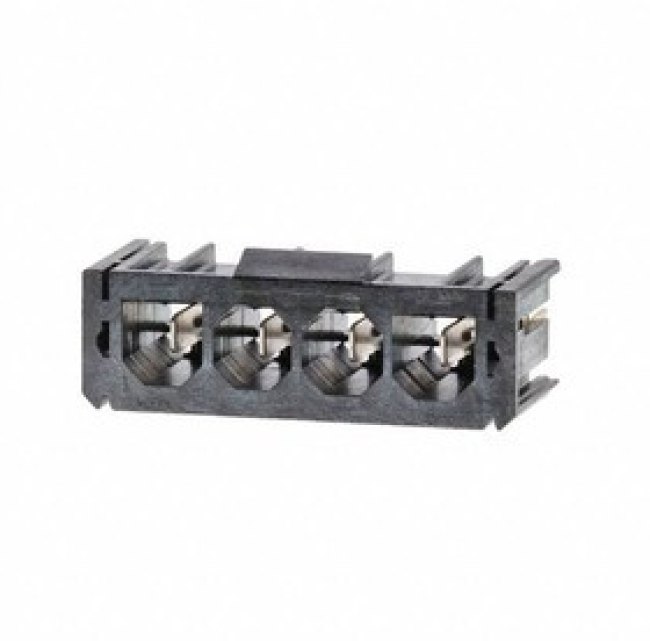

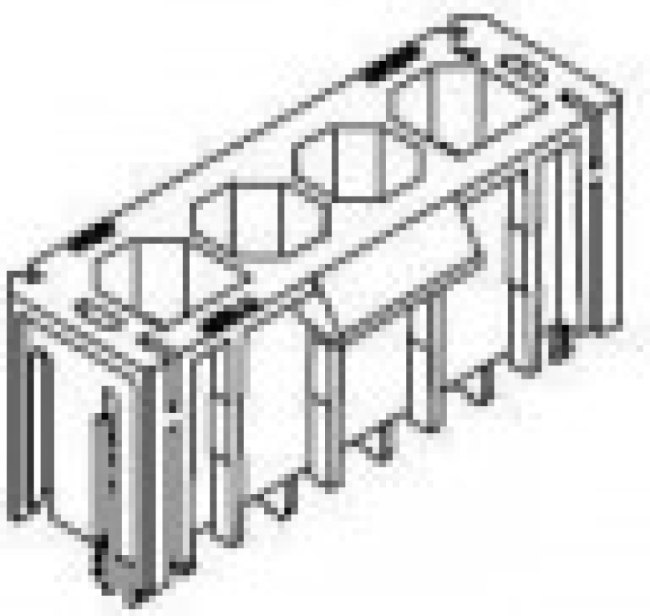

Connectors, Interconnects\Blade Type Power Connectors4-позиционный разъем, коннектор с наружными лезвиями, под пайку 0,295 дюйма (7,50 мм), сквозное отверстие
| Информация о производителе | |
| Производитель | Molex |
| Бренд | Molex |
| Основные | |
| accessory type | - |
| application | Power, Signal, Wire-to-Board |
| automotive | No |
| base product number | 172042 -> |
| body orientation | Straight |
| color | Black |
| connector type | Header, Male Blades |
| contact finish | Silver |
| contact finish thickness | 100.0Вµin (2.54Вµm) |
| contact gender | Pin(Male) |
| contact gender: | Pin(Male) |
| contact material | Copper |
| contact material: | Copper |
| contact plating | Silver |
| contact plating: | Silver |
| contact type | - |
| current rating | 30 A |
| current rating: | 30 A |
| current rating (amps) | 30A |
| Дата загрузки | 29.03.2024 |
| eccn | EAR99 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity | 280 |
| factory pack quantity: factory pack quantity: | 280 |
| fastening type | Locking Ramp |
| features | Board Lock, Finger-Proof |
| flammability rating | UL 94 V-0 |
| gender | HDR |
| housing material | Liquid Crystal Polymer(LCP) |
| housing material: | Liquid Crystal Polymer(LCP) |
| htsus | 8536.69.4040 |
| insulation resistance | 5000 MOhms |
| insulation resistance: | 5000 MOhms |
| insulation resistance (mohm) | 5000 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Molex |
| manufacturer: | Molex |
| material - insulation | Liquid Crystal Polymer (LCP), Glass Filled |
| mating cycle (cycles) | 25 |
| maximum contact resistance (mohm) | 02.05.2024 |
| maximum current rating (a) | 30/Contact |
| maximum operating temperature: | +125 C |
| maximum operating temperature (°c) | 125 |
| maximum voltage rating | 600VAC |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Through Hole |
| mounting angle | Straight |
| mounting angle: | Straight |
| mounting style | Board Lock |
| mounting style: | Board Lock |
| mounting type | Through Hole |
| number of contacts | 4 |
| number of positions | 4 |
| number of positions: | 4 Position |
| number of rows | 1 |
| number of rows: | 1 Row |
| operating temperature | -40В°C ~ 125В°C |
| package | Tray |
| packaging | Tray |
| packaging: | Tray |
| партномер | 8006188019 |
| part status | active |
| pitch | 0.295"" (7.50mm) |
| pitch: | 7.5 mm |
| polarization type | Center Key |
| ppap | No |
| product | Headers |
| product: | Headers |
| product category | Headers Wire Housings |
| product category: | Headers & Wire Housings |
| product type: | Headers & Wire Housings |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| row spacing | - |
| series | Super Sabre 172042 -> |
| series: | 172042 |
| subcategory: | Headers & Wire Housings |
| terminal pitch (mm) | 7.49 |
| termination | Solder |
| termination method | Solder |
| termination post length | 3.81 mm |
| termination style | Through Hole |
| termination style: | Solder Pin |
| tradename | Super Sabre |
| tradename: | Super Sabre |
| type | Power |
| unit weight | 0.188786 oz |
| voltage rating | 600V |
| voltage rating: | 600 VAC |
| Время загрузки | 12:46:35 |
