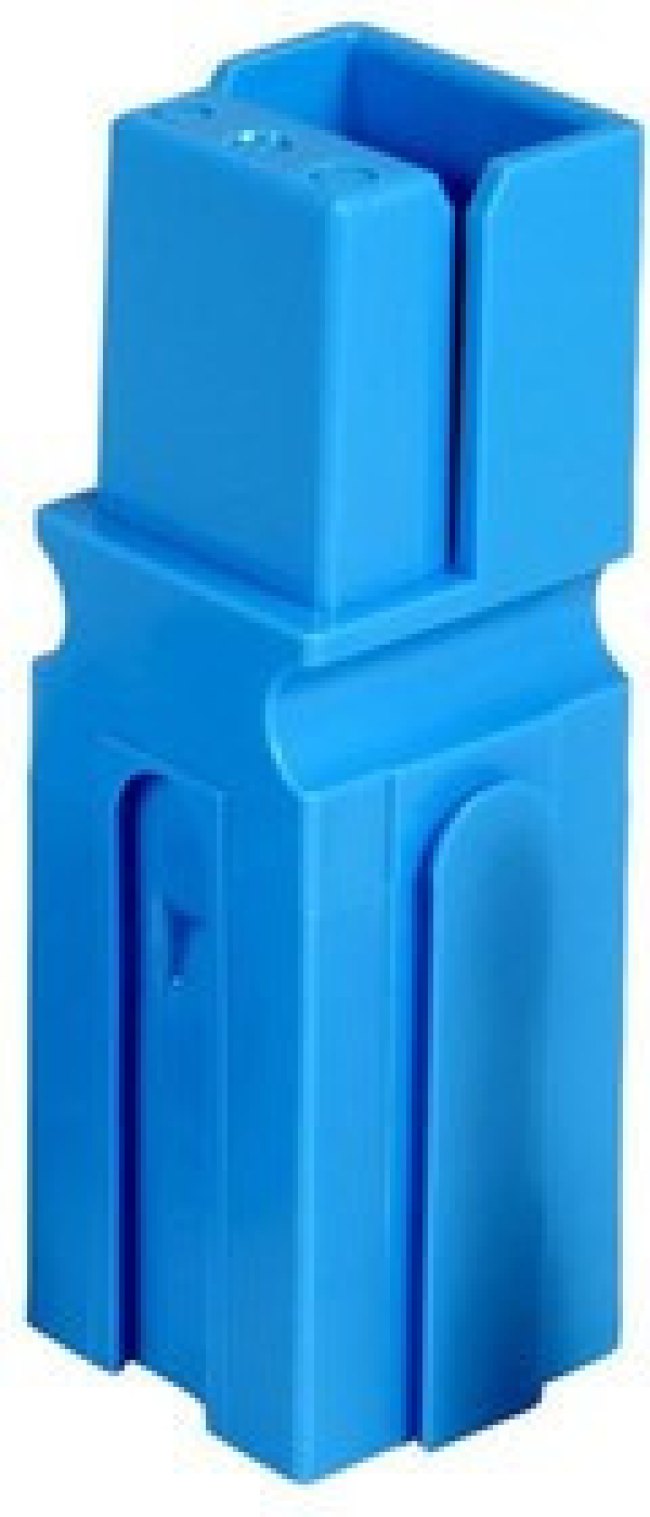

1381-BK, Heavy Duty Power Connectors PP180 HOUSING ONLY BLUE - BULK

Оставить отзыв
В избранноеВ сравнение
Артикул: 1381-BK
Кнопки, переключатели, разъемы, реле Разъемы Питания APP 1381-BK, Heavy Duty Power Connectors PP180 ...
Информация о производителе
ПроизводительAnderson Power Products
БрендAnderson Power Products
Основные
current rating:350 A
3 320
+
Бонус: 66.4 !
Бонусная программа
Итого: 3 320
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\Power Connectors\Heavy Duty Power ConnectorsPP180 Powerpole® ConnectorsAnderson Power Products PP180 Powerpole ® Connectors are a color-coded, stackable, modular, and genderless family of heavy-duty wire connector housing solutions. These polycarbonate housings accommodate wires up to size 3/0AWG and high currents up to 350A. The self-securing PP180 series uses retaining pins to stay stacked and can be fastened to a panel with mounting clamps. Features include low resistance silver-plated copper contacts, a UL 94V-0 flammability rating, and an additional UL rating to allow for hot plugging up to 75A for 250 cycles. APP PP180 Powerpole connector housings provide a durable connecting solution for applications that require the ability to interrupt circuits.
Информация о производителе
ПроизводительAnderson Power Products
БрендAnderson Power Products
Основные
current rating:350 A
Дата загрузки30.03.2024
factory pack quantity: factory pack quantity:250
housing material:Polycarbonate(PC)
категорияКнопки, переключатели, разъемы, реле/Разъемы
manufacturer:Anderson Power Products
maximum operating temperature:+105 C
minimum operating temperature:-20 C
mounting angle:Straight
партномер8018898036
product category:Heavy Duty Power Connectors
product type:Heavy Duty Power Connectors
series:PP180
subcategory:Power Connectors
termination style:Busbar
tradename:Powerpole
вес, г36
voltage rating:600 V
Время загрузки21:07:04
wire gauge max:3/0 AWG
wire gauge min:10 AWG
wire gauge range:10 AWG to 3/0 AWG
