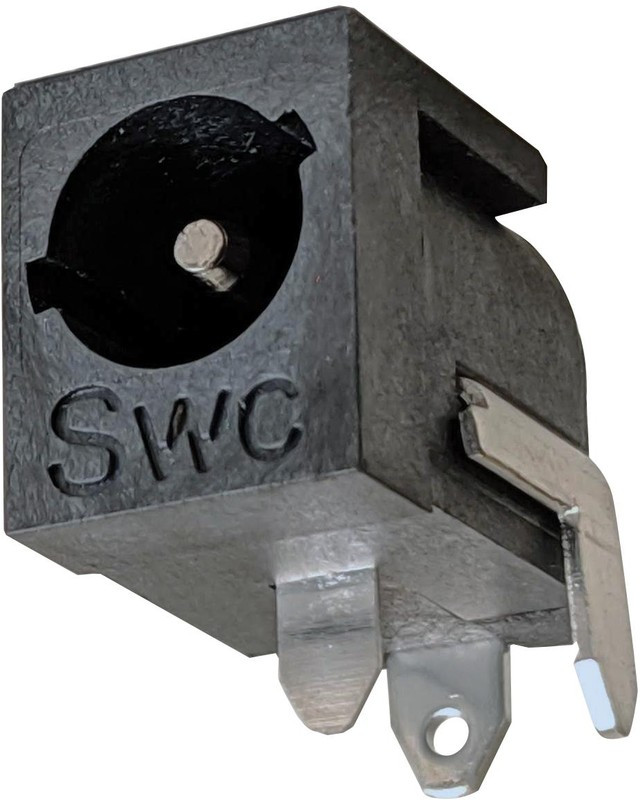

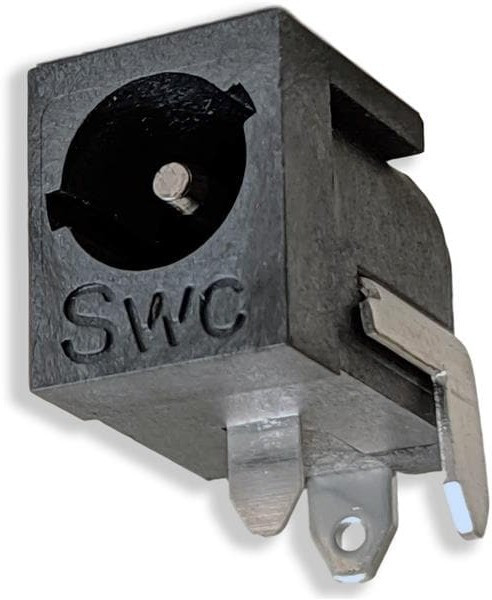

Connectors, Interconnects\Barrel - Power ConnectorsГнездо разъема для цилиндра питания Внутренний диаметр 2,00 мм (0,079 дюйма), внешний диаметр 5,50 мм (0,217 дюйма), сквозное отверстие, под прямым углом
Информация о производителе | |
Производитель | Switchcraft |
Бренд | Switchcraft |
Основные | |
actual diameter | 0.079"" (2.00mm ID), 0.248"" (6.30mm OD) |
body color | Black |
body material | Copper Alloy |
color: | Black |
connector type | Jack |
contact gender: | Pin(Male) |
contact material | copper alloy |
contact material: | Copper Alloy |
contact material - plating | Silver |
contact plating: | Nickel |
current rating: | 5 A |
current rating (amps) | 5A |
Дата загрузки | 28.03.2024 |
диаметр штыря | 2мм |
dielectric material | Thermoplastic |
eccn | EAR99 |
factory pack quantity: factory pack quantity: | 2500 |
features | - |
flammability rating: | UL 94 V-0 |
gender | Male |
housing material | Thermoplastic |
housing material: | Thermoplastic(TP) |
htsus | 8536.69.4040 |
includes | - |
industry recognized mating diameter | 2.00mm ID (0.079""), 5.50mm OD (0.217"") |
ingress protection | - |
inside contact diameter: | 2 mm |
insulation color | Black |
internal switch(s) | Single Switch, Normally Closed |
категория | Кнопки, переключатели, разъемы, реле/Разъемы |
линейка продукции | BKZ series |
manufacturer | Switchcraft Inc. |
manufacturer: | Switchcraft |
material flammability rating | - |
mating length/depth | - |
maximum operating temperature: | +65 C |
minimum operating temperature: | -30 C |
moisture sensitivity level (msl) | Not Applicable |
монтаж разъема | PCB Mount |
mounting angle: | Right Angle |
mounting feature | - |
mounting style: | Through Hole |
mounting type | Through Hole, Right Angle |
number of positions/contacts | 2 Conductors, 3 Contacts |
operating temperature | -30В°C ~ 65В°C |
outside contact diameter: | 6.3 mm |
package | Bulk |
packaging | Bulk |
packaging: | Bulk |
партномер | 8005997854 |
part status | Active |
product: | Jacks |
product category: | DC Power Connectors |
product type: | DC Power Connectors |
rohs status | ROHS3 Compliant |
series | - |
series: | BKZ |
shielding | Unshielded |
subcategory: | Power Connectors |
termination | Solder Eyelet(s) |
termination style: | Through Hole |
thread size | - |
тип электрического разъема | Jack |
тип оконцовки контакта | Through Hole |
ток | 5А |
вес, г | 2.304 |
video file | BKZ Series DC Power Jacks and Plugs |
внешний диаметр отверстия | 6.3мм |
voltage - rated | 100VDC |
voltage rating: | 24 VDC |
Время загрузки | 12:34:22 |
