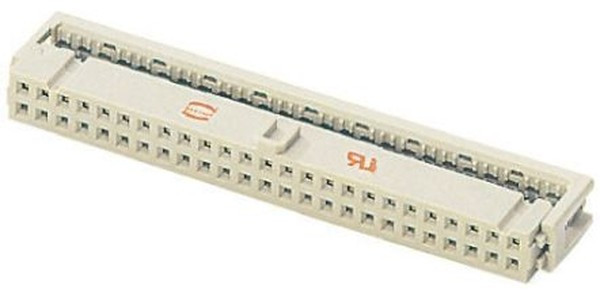

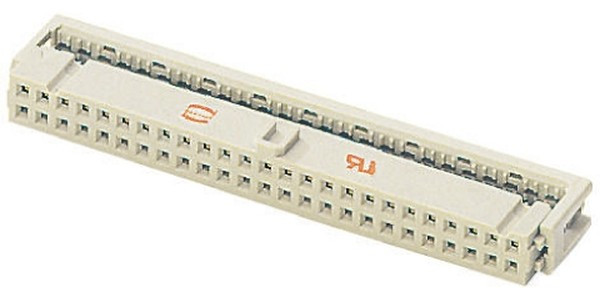

9185507803

ЭлектроэлементSOCKET, IDC, W/O S/RELIEF, 50WAY; Pitch Spacing:2.54mm; No. of Contacts:50Contacts; Gender:Receptacle; Product Range:SEK 18 Series; Contact Termination Type:IDC / IDT; No. of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Brass; SVHC:No SVHC (15-Jan-2018); Approval Bodies:BS, BT, DIN, F, MIL Spec, NFC; Colour:Grey; Contact Current Rating:1A; Contact Resistance:20mohm; Flammability Rating:UL94V-0; IDC Cable Pitch:0.05"; Insulation Resistance:1Gohm; No. of Mating Cycles:100; Operating Temperature Max:105В°C; Operating Temperature Min:-40В°C; Row Pitch:2.54mm; Voltage Rating V DC:350V; Voltage Rating VAC:350V; Withstand Voltage:1050V
