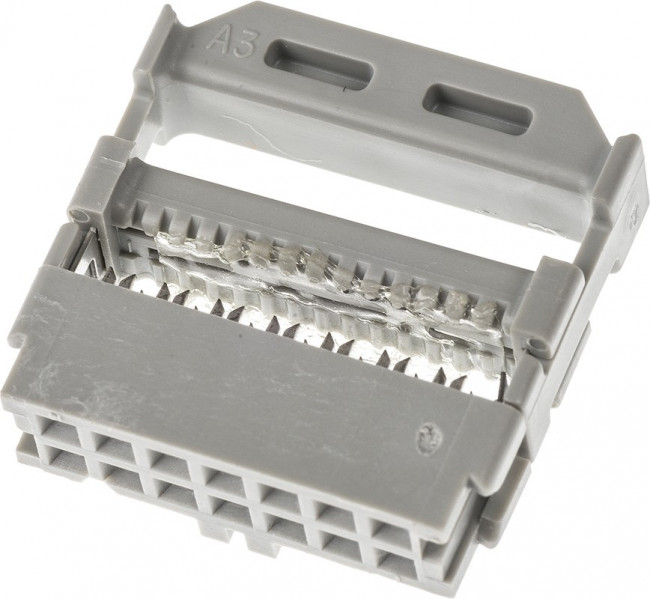

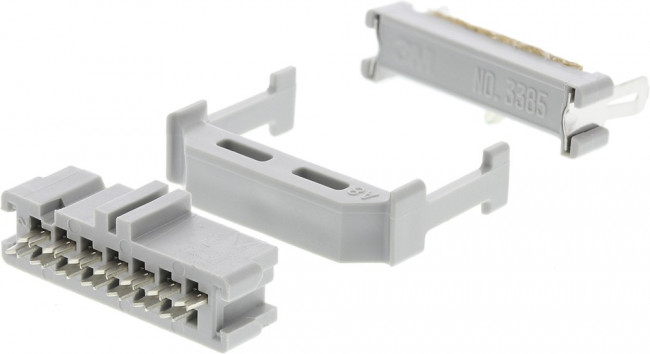

Connectors3000 series cable mount industry standard IDC ribbon cable socket connectors with a 2.54 x 2.54 mm pitch.
Информация о производителе
Производитель
3M
Бренд
3M
Основные
body orientation
Right Angle
color
Grey
connector type
IDC, Receptacle, Socket
contact current rating
1 A
contact gender
Female
contact material
Copper
contact plating
Gold
contact resistance
20 mΩ
current rating
1 A
Дата загрузки
09.04.2024
flammability rating
UL94 V-0
gender
Receptacle
hole diameter
890 µm
housing color
Grey
housing material
Polybutylene
insulation resistance
1 GΩ
категория
Кнопки, переключатели, разъемы, реле/Разъемы
lead pitch
2.54 mm
material
Glass, PBT, Polyester
maximum operating temperature
105.0°C
minimum operating temperature
-55.0°C
mounting type
Cable Mount
number of contacts
14
number of positions
14
number of rows
2
orientation
Right Angle
партномер
8005813548
pitch
2.54 mm
row spacing
2.54 mm
series
3000
termination
IDT
termination method
IDC
voltage rating
1 kV ac
Время загрузки
13:26:44
working voltage
350 V
