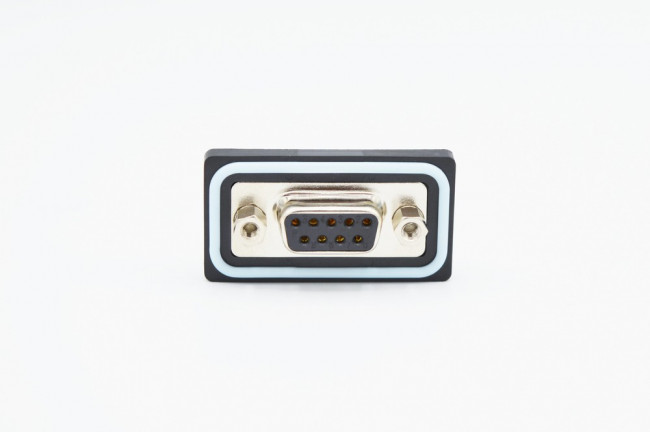

SDF-R09-213L461, D-Sub Standard Connectors 9 pin R/A solder F FL 4-40 thrd brkt

Оставить отзыв
В избранноеВ сравнение
Артикул: SDF-R09-213L461
Кнопки, переключатели, разъемы, реле Разъемы D-SUB и корпуса для них Norcomp SDF-R09-213L461, D-Sub Standard Connectors 9 ...
Информация о производителе
ПроизводительNorcomp
БрендNorcomp
Основные
body orientationRight Angle
3 620
+
Бонус: 72.4 !
Бонусная программа
Итого: 3 620
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\D-Sub Connectors\D-Sub Standard ConnectorsRugged Environment Certified (REC) Connectors NorComp Rugged Environment Certified (REC) Connectors are ruggedized harsh-environment connector solutions that have been proven to withstand the most challenging environments. Rugged Environment Certified (REC) is an external testing certification certifying quality and performance. These connectors encompass D-sub and circular connectors that are available in standard, high-density, or mixed layout types. These connectors are reliable, cost-effective, provide ease of installation, and are ideal for use in many outdoor harsh environments including oil rigs, weather stations, and ruggedized industrial applications.
Информация о производителе
ПроизводительNorcomp
БрендNorcomp
Основные
body orientationRight Angle
contact gender:Socket(Female)
contact material:Brass
contact plating:Gold
current rating:5 A
Дата загрузки06.04.2024
factory pack quantity: factory pack quantity:63
genderFemale
gender:Female
insulation material:Polybutylene Terephthalate(PBT)
ip rating:IP67
категорияКнопки, переключатели, разъемы, реле/Разъемы
количество контактов9
manufacturer:NorComp
maximum operating temperature:+85 C
minimum operating temperature:-25 C
mounting angle:Right Angle
mounting style:Flange
mounting typePCB Mount
number of contacts9
number of positions:9 Position
number of rows:2 Row
packaging:Tray
партномер8005073669
pitch2.74mm
product category:D-Sub Standard Connectors
product type:D-Sub Connectors-Standard Density
seriesSDF
series:SDF
shell materialSteel
shell plating:Nickel
shell size1(E)
subcategory:D-Sub Connectors
termination style:Solder Pin
tradename:NANOOK
type:Receptacle
