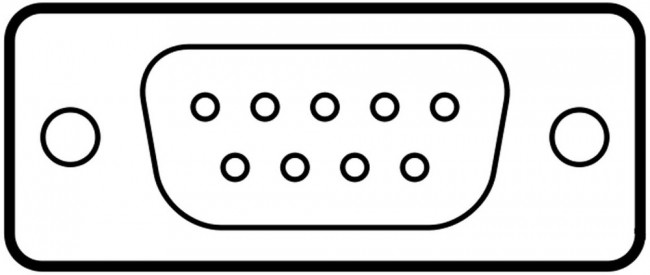

L77DE09SST3, Разъем D Sub, Standard, Гнездо, Серия D-ST, 9 контакт(-ов), DE, Винт

Разъемы\Разъемы и Компоненты D Sub\Стандартные Разъемы D SubThe L77DE09SST3 is a 9-way standard female D-sub Connector with gold-plated machined brass contacts. The D-ST series D-sub connector has DE-size tin-plated steel shell and a glass filled thermoplastic insulator. The screw termination D-sub series is especially designed for field applications. This connector is compatible with all standard DTZK hood. • 7.5A Current rating• 300VAC at 50Hz Voltage rating• 1000VAC at 50Hz for one minute Dielectric withstanding voltage• >5000MR at 500VDC Insulation resistance• <5mR Maximum contact resistance
