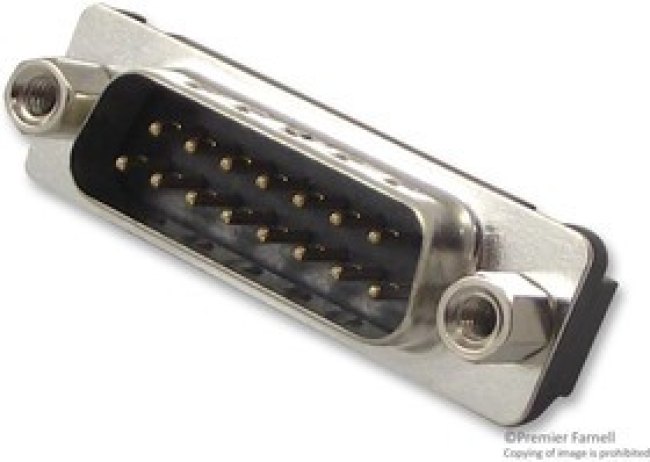

L717TSAH15POL2RM8, Разъем D Sub, DB15, Standard, Штекер, Серия TS, 15 контакт(-ов), DA, Пайка

Разъемы\Разъемы и Компоненты D Sub\Стандартные Разъемы D SubThe L717TSAH15POL2RM8 is a 15-position standard D-sub Plug with gold-plated copper alloy contacts, A-size tin over nickel-plated steel shell and a glass-filled thermoplastic insulator. The TS series D-sub connector has stamped contacts and boardlock + front screwlock. • 4-40 Mount• 6.02mm (0.237") Termination• 5A Current rating• 600VAC at 50Hz Voltage rating• 1000VAC at 50Hz for one minute Dielectric withstanding voltage• 5000MR Insulation resistance• 10mR Maximum contact resistance
