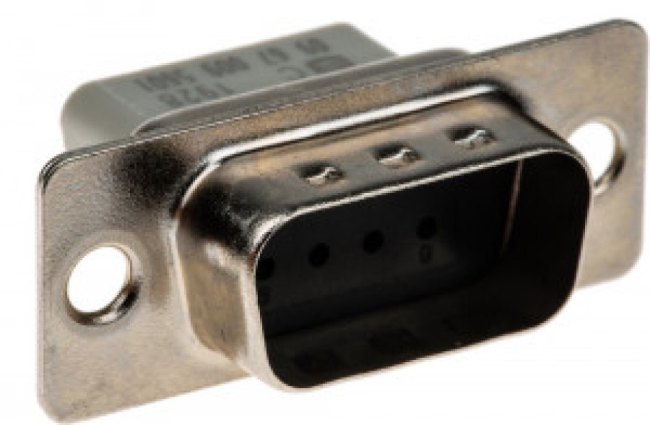

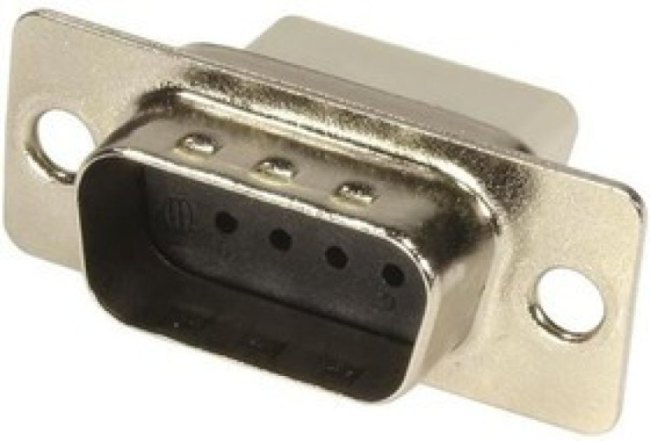

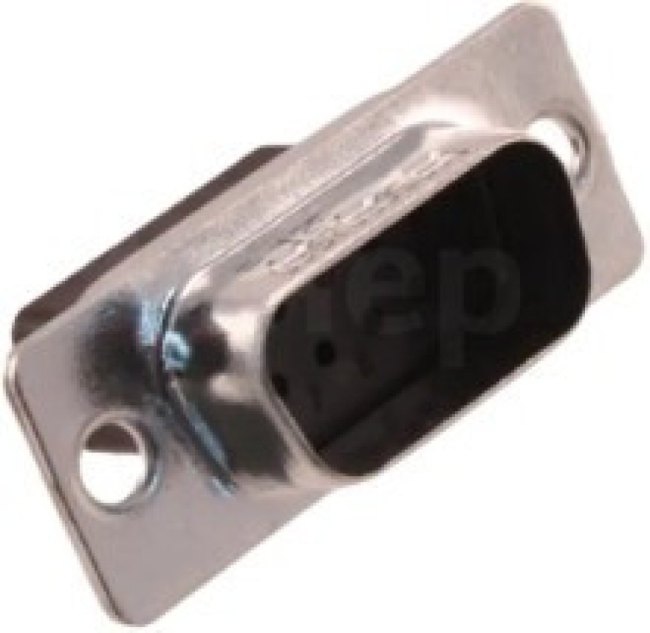

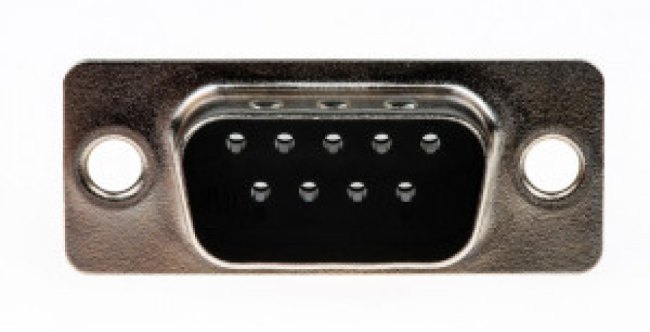

9670095601

ЭлектроэлементPLUG HOUSING, D, 9WAY; No. of Positions:9Ways; Connector Type:D Sub; Connector Shell Size:DE; Product Range:-; Gender:Plug; Connector Body Material:Metal Body; For Use With:D Sub Pin Contacts; SVHC:No SVHC (15-Jan-2018); Approval Category:UL 94V-0; Body Plating:Tin; Case Material:Steel, tin plating; Contact Plating:Gold over Nickel Plated Contacts; Contact Resistance:10mohm; Current Temperature:70В°C; D Sub Shell Size:DE; DC Current Max:4A; Flammability Rating:UL94V-0; No. of Mating Cycles:50; Operating Temperature Max:125В°C; Operating Temperature Min:-55В°C; Working Voltage:125V
