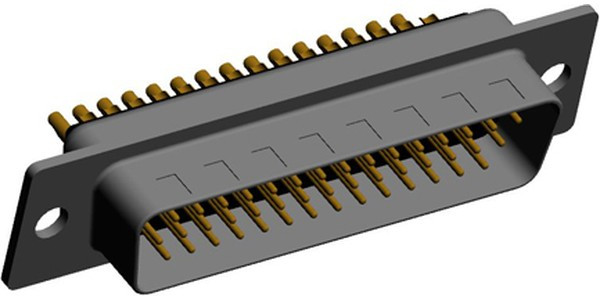

780-M44-103L001, D-Sub High Density Connectors 44P HD MALE IP67 SOLDER CUP

Оставить отзыв
В избранноеВ сравнение
Артикул: 780-M44-103L001
Кнопки, переключатели, разъемы, реле Разъемы D-SUB и корпуса для них Norcomp 780-M44-103L001, D-Sub High Density ...
Информация о производителе
ПроизводительNorcomp
БрендNorcomp
Основные
body orientationStraight
4 410
+
Бонус: 88.2 !
Бонусная программа
Итого: 4 410
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\D-Sub Connectors\D-Sub High Density ConnectorsRugged Environment Certified (REC) Connectors NorComp Rugged Environment Certified (REC) Connectors are ruggedized harsh-environment connector solutions that have been proven to withstand the most challenging environments. Rugged Environment Certified (REC) is an external testing certification certifying quality and performance. These connectors encompass D-sub and circular connectors that are available in standard, high-density, or mixed layout types. These connectors are reliable, cost-effective, provide ease of installation, and are ideal for use in many outdoor harsh environments including oil rigs, weather stations, and ruggedized industrial applications.
Информация о производителе
ПроизводительNorcomp
БрендNorcomp
Основные
body orientationStraight
contact materialBrass
contact platingGold
contact plating:Gold
current rating5.0A
current rating:5 A
Дата загрузки05.04.2024
factory pack quantity: factory pack quantity:50
genderMale
gender:Male
housing materialSteel
ip rating:IP67
категорияКнопки, переключатели, разъемы, реле/Разъемы
manufacturer:NorComp
maximum operating temperature+105°C
minimum operating temperature-55.0°C
mounting angle:Straight
mounting style:Panel
mounting typePlug-In Mount
number of contacts44
number of positions:44 Position
number of rows:3 Row
packaging:Tray
партномер8005073020
pitch2.286mm
product category:D-Sub High Density Connectors
product type:High Density D-Sub Connectors
series780, SEAL-D
series:780
shell plating:Nickel
subcategory:D-Sub Connectors
termination methodSolder
termination style:Solder
tradename:SEAL-D
вес, г12.05.2024
voltage rating1 kV
Время загрузки23:25:58
width10.9mm
