776437-1, Automotive Connectors PLUG ASSY 12PS 14-18 RED (776437-1) — купить | ООО «Телеметрия»

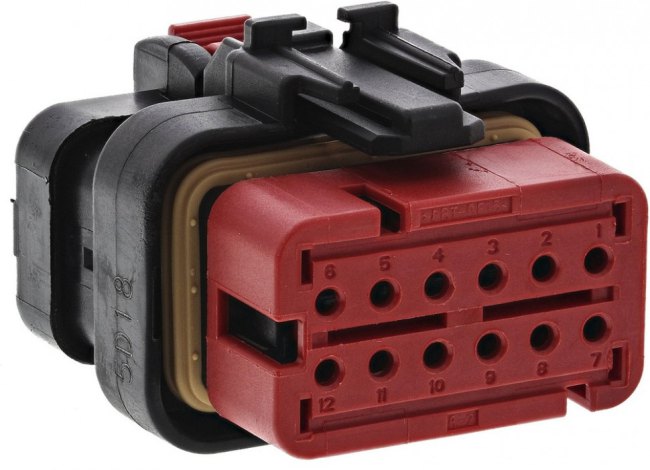

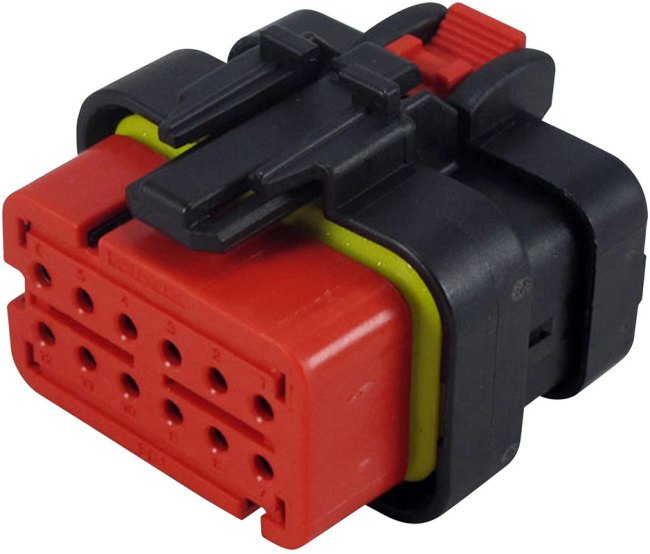

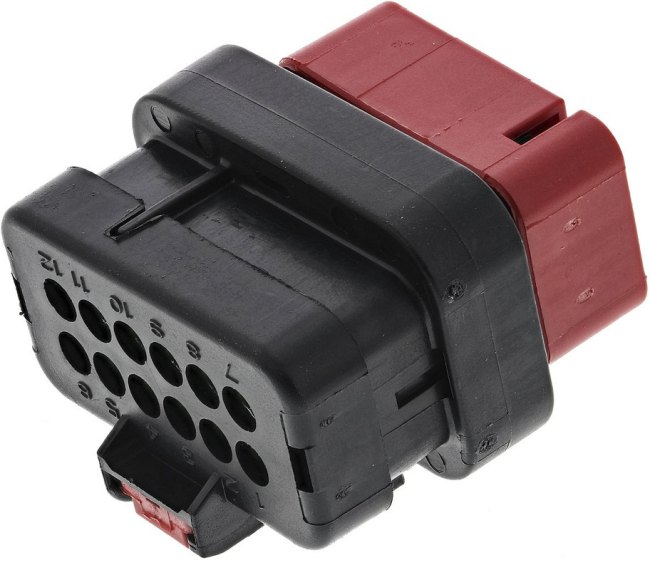

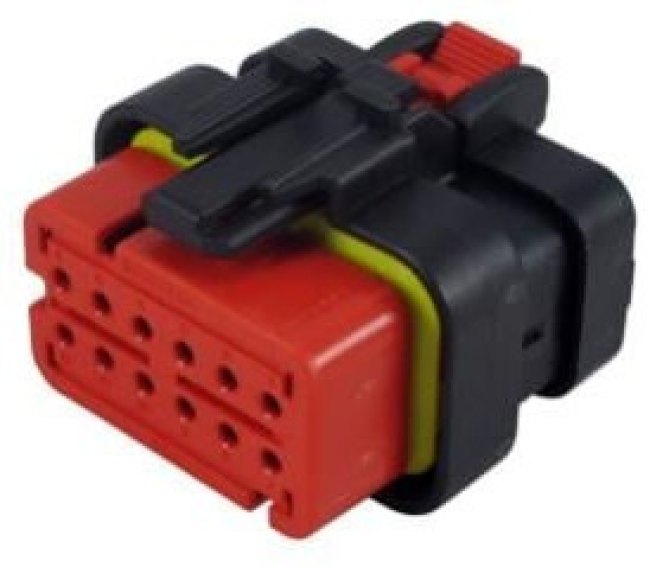

776437-1, Automotive Connectors PLUG ASSY 12PS 14-18 RED

Оставить отзыв
В избранноеВ сравнение
Артикул: 776437-1
Кнопки, переключатели, разъемы, реле Разъемы D-SUB и корпуса для них TE Connectivity 776437-1, Automotive Connectors PLUG ASSY ...
TE Connectivity
Информация о производителе
ПроизводительTE Connectivity
БрендTE Connectivity
Основные
application:Wire to Wire
1 360
- +
Бонус: 27.2 !
Бонусная программа
Итого: 1 360
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\Automotive ConnectorsIndustrial & Commercial Transportation TE Connectivity's (TE) comprehensive line of Industrial & Commercial Transportation products includes an unparalleled portfolio of rugged electrical connector products and sensor technologies. TE"s environmentally sealed connectors are designed to withstand the harshest environmental conditions and to keep vehicles moving forward. TE's portfolio of heavy-duty sensors helps vehicles operate safer, cleaner, and smarter. Applications range from heavy-duty trucks to construction equipment, mining vehicles to fire trucks, as well as boats, motorcycles, and tractors.
Информация о производителе
ПроизводительTE Connectivity
БрендTE Connectivity
Основные
application:Wire to Wire
body materialPBT GF
color:Red
colourred
contact gender:Without Socket Contacts
contact type:Socket
current rating:13 A
Дата загрузки05.04.2024
description/function:AMPSEAL 16, Housing for Female Terminals
для использования сAMP AMPSEAL Series Socket Contacts
factory pack quantity: factory pack quantity:14
flammability rating:UL94HB
genderMale
gender:Plug(Male)
height31.5 mm
housing material:Polybutylene Terephthalate(PBT)
ingress protectionIP67
категорияКнопки, переключатели, разъемы, реле/Разъемы
количество положений12вывод(-ов)
length38.33 mm
линейка продукцииAMPSEAL
lock mate feature:Integrated in Housing
manufacturer:TE Connectivity
material:Plastic
maximum operating temperature:+125 C
minimum operating temperature:-40 C
mounting angle:Straight
mounting featureWithout
mounting style:Cable Mount/Free Hanging
mounting typeCable Mount
number of positions12
number of positions:12 Position
number of rows2
number of rows:2 Row
operating temperature (max)70 °C, (75 °C), (80 °C), (85 °C), (90 °C), (100 °C), (105 °C), (110 °C), (120 °C), (125 °C)
operating temperature range-40-125 °C, (-40-125 °C)
operating voltage250 VDC
партномер8004918571
pitch:4.5 mm
product:Housings
product category:Automotive Connectors
product type:Automotive Connectors
row spacing:5.3 mm
seriesAMPSEAL 16
шаг контактов4.5мм
subcategory:Automotive Connectors
termination style:Crimp
тип электрического разъемаШтекер(Посмотреть сопутствующие разъемы)
typeAutomotive connector housing
вес, г21
voltage rating:250 VDC
Время загрузки20:28:45
width36.8 mm
wire gauge max:14 AWG
wire gauge min:20 AWG
wire gauge range:14 AWG to 20 AWG
