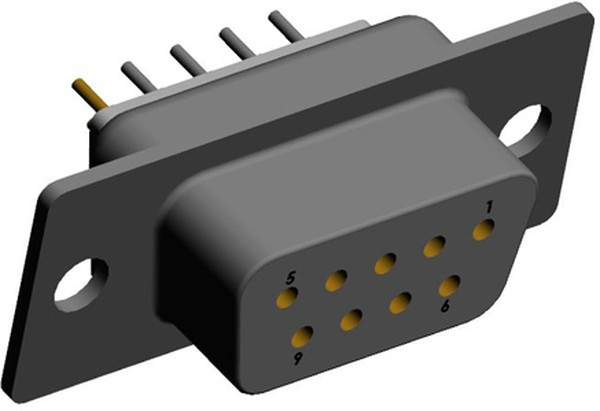

772-E09-213R001, D-Sub Standard Connectors 9P FEMALE IP67 VERTICAL DIP SOLDER

Оставить отзыв
В избранноеВ сравнение
Артикул: 772-E09-213R001
Кнопки, переключатели, разъемы, реле Разъемы D-SUB и корпуса для них Norcomp 772-E09-213R001, D-Sub Standard Connectors 9P ...
Информация о производителе
ПроизводительNorcomp
БрендNorcomp
Основные
body orientationStraight
2 750
+
Бонус: 55 !
Бонусная программа
Итого: 2 750
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\D-Sub Connectors\D-Sub Standard ConnectorsRugged Environment Certified (REC) Connectors NorComp Rugged Environment Certified (REC) Connectors are ruggedized harsh-environment connector solutions that have been proven to withstand the most challenging environments. Rugged Environment Certified (REC) is an external testing certification certifying quality and performance. These connectors encompass D-sub and circular connectors that are available in standard, high-density, or mixed layout types. These connectors are reliable, cost-effective, provide ease of installation, and are ideal for use in many outdoor harsh environments including oil rigs, weather stations, and ruggedized industrial applications.
Информация о производителе
ПроизводительNorcomp
БрендNorcomp
Основные
body orientationStraight
contact gender:Socket(Female)
contact materialBrass
contact platingGold
contact plating:Gold
current rating5.0A
current rating:5 A
Дата загрузки05.04.2024
factory pack quantity: factory pack quantity:50
genderFemale
gender:Female
housing materialSteel
ip rating:IP67
категорияКнопки, переключатели, разъемы, реле/Разъемы
manufacturer:NorComp
maximum operating temperature+100°C
minimum operating temperature-50.0°C
mounting angle:Straight
mounting style:Through Hole
mounting typeThrough Hole
number of contacts9
number of positions:9 Position
number of rows:2 Row
packaging:Tray
партномер8005072975
pitch2.769mm
product category:D-Sub Standard Connectors
product type:D-Sub Connectors-Standard Density
seriesSEAL-D
series:772
series number772
shell materialSteel
shell plating:Nickel
shell size1(E)
subcategory:D-Sub Connectors
termination methodSolder
termination style:Solder Pin
tradename:SEAL-D
type:Receptacle
вес, г6
voltage rating500 V
Время загрузки19:44:25
width10.08mm
