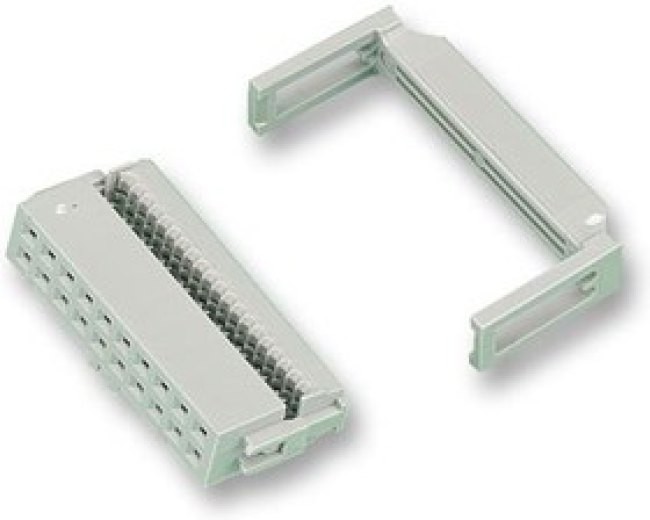

71600-020LF, .100" RCPT 2X10P

RECEPTACLE, IDC, S/RELIEF, 2.54MM, 20WAY; Pitch Spacing:2.54mm; No. of Contacts:20Contacts; Gender:Receptacle; Product Range:Quickie Series; Contact Termination Type:IDC / IDT; No. of Rows:2Rows; Contact Plating:Gold Plated Contacts; Contact Material:Phosphor Bronze; SVHC:No SVHC (15-Jan-2019); Contact Current Rating:1A; Flammability Rating:UL94V-0; Insulation Resistance:50000Mohm; No. of Mating Cycles:250; Operating Temperature Max:105°C; Operating Temperature Min:-65°C; PCB Hole Diameter:1mm; Polarisation Type:Bump or Clip; Row Pitch:2.54mm; Withstand Voltage:1000V
