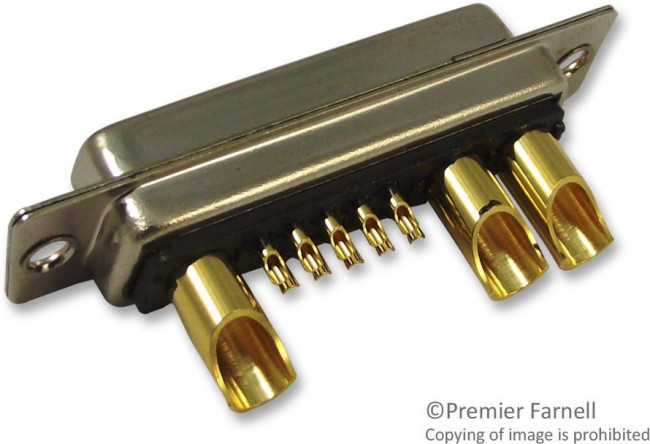

680S13W3203L401, Комбинированный разъем D Sub, 40А, Серия SEAL-D 680S, DB-13W3, Гнездо, 13 контакт(-ов)

Разъемы\Разъемы и Компоненты D Sub\D Sub Разъемы Комбинированной РаскладкиThe SEAL-D 680S series POWER-D solder-cup version D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 11 industry standard sizes/positions are 3W3, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current POWER-D connectors. • Available in 9, 15, 25 and 37 sizes/positions• Available with 20 or 40A power contacts, 5A signal• IP67 Protection• Allows signal, high current and high voltage in one connector• Contacts are pre-loaded into the insulator• UL94V-0 Flammability rating
