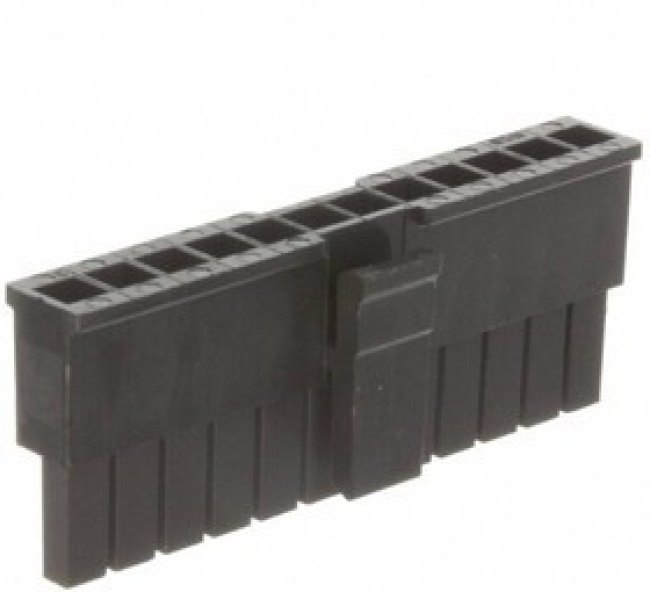

ЭлектроэлементCONNECTOR HOUSING, RCPT, 12POS; Product Range:Micro-Fit 3.0 43645 Series; Gender:Receptacle; No. of Positions:12Ways; Pitch Spacing:3mm; For Use With:Molex Micro-Fit 3.0 43030, 45773 & Micro-Fit RMF 46235 Series Socket C
| Информация о производителе | |
| Производитель | Molex |
| Бренд | Molex |
| Основные | |
| application: | Wire-to-Board, Wire-to-Wire, Power |
| automotive | No |
| base product number | 043645 -> |
| body orientation | Straight |
| color | Black |
| connector type | Receptacle |
| contact gender | Socket(Female) |
| contact gender: | Socket(Female) |
| contact termination | Crimp |
| contact type | Female Socket |
| current rating | 5 A |
| current rating: | 5 A |
| Дата загрузки | 04.04.2024 |
| eccn | EAR99 |
| eccn (us) | ear99 |
| factory pack quantity | 1500 |
| factory pack quantity: factory pack quantity: | 1500 |
| fastening type | Latch Lock |
| flammability rating: | UL 94 V-0 |
| gender | F |
| housing color | Black |
| housing material | Polyester |
| housing material: | Polyester |
| htsus | 8536.69.8000 |
| insulation resistance (mohm) | 1000 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Molex |
| manufacturer: | Molex |
| mating cycle (cycles) | 30 |
| maximum current rating (a) | 8/Contact |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum voltage rating | 600VDC|600VAC |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| moisture sensitivity level (msl) | 1 (Unlimited) |
| mounting | Cable Mount |
| mounting style | Free Hanging |
| mounting style: | Cable Mount/Free Hanging |
| mounting type | Free Hanging (In-Line) |
| note | Contacts Not Included |
| number of contacts | 12 |
| number of positions | 12 Position |
| number of positions: | 12 Position |
| number of rows | 1 Row |
| number of rows: | 1 Row |
| package | Bulk |
| packaging | Bulk |
| packaging: | Bulk |
| партномер | 8002009123 |
| part # aliases | 436451200 |
| part # aliases: | 436451200 |
| part status | active |
| pitch | 3 mm |
| pitch: | 3 mm |
| ppap | No |
| product | Wire Housings |
| product: | Wire Housings |
| product category | Headers Wire Housings |
| product category: | Headers & Wire Housings |
| product type: | Headers & Wire Housings |
| reach status | REACH Unaffected |
| rohs | Details |
| rohs status | ROHS3 Compliant |
| series | 43645 |
| series: | 43645 |
| subcategory: | Headers & Wire Housings |
| terminal pitch (mm) | 3 |
| termination method | Crimp |
| termination style | Crimp |
| termination style: | Crimp |
| tradename | Micro-Fit 3 |
| tradename: | Micro-Fit 3 |
| type | Receptacle Housing |
| type: | Receptacle Housings |
| unit weight | 0.050124 oz |
| вес, г | 01.05.2024 |
| video file | Conectores de alimentaciГіn Micro-Fit |
| Время загрузки | 12:50:24 |
