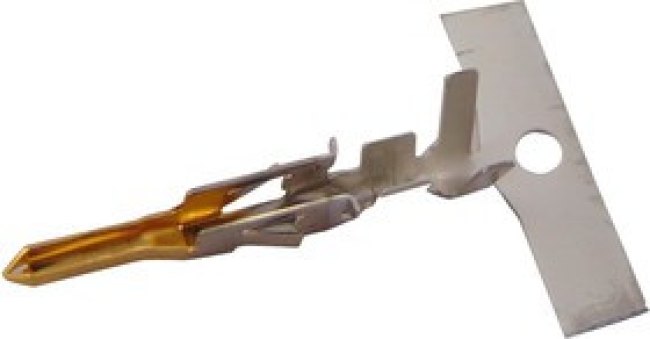

39-00-0219

The 39-00-0219 from Molex is a Mini-Fit® male crimp terminal. It mates with 5556 Mini-Fit® crimp terminal and used with 5559 Mini-Fit Jr.™ plug housing, 30068 Mini-Fit® TPA plug housing and 42475 Mini-Fit® BMI plug housing. • Gold (Au) over phosphor bronze contact, tin termination plating• 18AWG, 20AWG, 22AWG, 24AWG wire size• 126.914/mg net weight• Wire insulation diameter range from 1.30mm to 3.10mm• Crimp or compression termination interface style• Maximum voltage is 600V• Maximum current per contact is 9A• Maximum durability of 30 mating cycle
