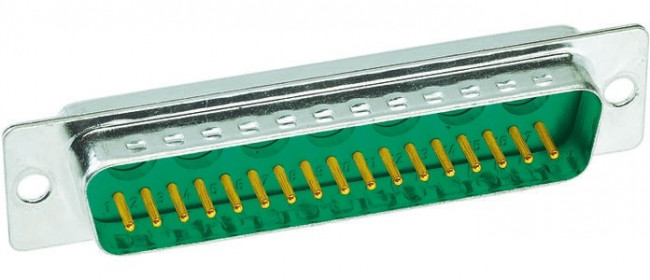

09695117247, D-Sub Mixed Contact Connectors DSUB ML STR 24W7 WITH PL3 SLDRCUP

Оставить отзыв
В избранноеВ сравнение
Артикул: 9695117247
Кнопки, переключатели, разъемы, реле Разъемы D-SUB и корпуса для них Harting 09695117247, D-Sub Mixed Contact Connectors ...
Информация о производителе
ПроизводительHarting
БрендHarting
Основные
body orientationStraight
3 380
+
Бонус: 67.6 !
Бонусная программа
Итого: 3 380
Купить
  • Обзор
  • Характеристики
  • Отзывы (0)
  • Реквизиты
Connectors\D-Sub Connectors\D-Sub Mixed Contact ConnectorsMixed D-Sub Connectors HARTING Mixed D-Sub Connectors brings the advantage of an industry standard I/O interconnect product with the possibility to customize for any application. The range is designed around the standard D-Sub shell sizes with the possibility to have a blend of contacts such as signals with coaxial, power, high voltage or pneumatic contacts.
Информация о производителе
ПроизводительHarting
БрендHarting
Основные
body orientationStraight
colorGreen
connector styleD-Sub, Combo
connector typePlug, Male Pins
contact finish-
contact finish thickness-
contact form-
contact materialCopper Alloy
contact platingGold
contact typeSignal and Coax or Power(Not Included)
current rating5.0A
current rating (amps)5A
Дата загрузки05.04.2024
factory pack quantity: factory pack quantity:50
featuresGrounding Indents
genderMale
housing materialSteel
категорияКнопки, переключатели, разъемы, реле/Разъемы
manufacturerHARTING
manufacturer:HARTING
material flammability ratingUL94 V-0
maximum operating temperature+125°C
minimum operating temperature-55.0°C
mounting typePanel Mount
number of contacts24
number of positions24(17+7 Coax or Power)
number of rows2
operating temperature-55В°C ~ 125В°C
packagingBulk
packaging:Tray
партномер8004612614
part # aliases:09-69-511-7247 09 69 511 7247 9695117247
part statusactive
product category:D-Sub Mixed Contact Connectors
product type:Mixed Contact D-Sub Connectors
series-
subcategory:D-Sub Connectors
terminationSolder Cup
termination methodSolder
вес, г15
voltage rating-
Время загрузки19:00:05
width15.4mm
wire gauge20 AWG
Отзывов нет
