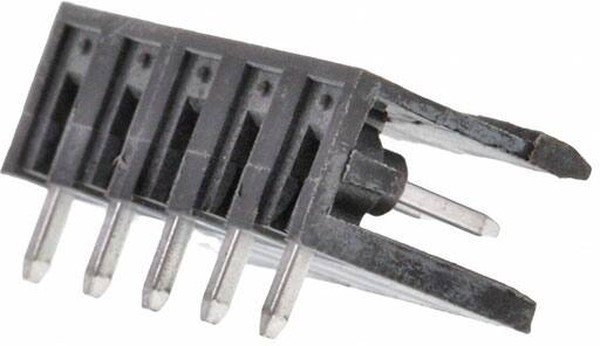

Name: 0395320005, Conn Shrouded Header (2 Sides) HDR 5 POS 5.08mm Solder RA Thru-Hole Eurostyle
Brand: Molex
SKU: 395320005

Кнопки, переключатели, разъемы, реле Разъемы Корпуса разъемов и аксессуры Molex 0395320005, Conn Shrouded Header (2 Sides) ...

Подробное описание

270 ₽

– +

Бонус: 5.4 !

Бонусная программа

Итого: 270 ₽

Купить

Connectors\Wire and PCB Connector\Connector Headers and PCB ReceptaclesConn Shrouded Header (2 Sides) HDR 5 POS 5.08mm Solder RA Thru-Hole Eurostyle

Информация о производителе
Производитель	Molex
Бренд	Molex
Основные
automotive	No
base product number	039532 ->
body orientation	Right Angle
color	Black
contact material	Brass
contact mating finish	Tin
contact tail length	0.150"" (3.81mm)
current - ul	15A
Дата загрузки	10.04.2024
eccn	EAR99
eccn (us)	ear99
eu rohs	compliant
gender	HDR
header orientation	90В°, Right Angle
housing material	Polyamide (PA66), Nylon 6/6
htsus	8536.69.4040
insulation height	0.327"" (8.30mm)
категория	Кнопки, переключатели, разъемы, реле/Разъемы
material flammability rating	UL94 V-0
maximum current rating (a)	15/Contact
maximum operating temperature (°c)	105
maximum voltage rating	300VDC\|300VAC
minimum operating temperature (°c)	-40
moisture sensitivity level (msl)	1 (Unlimited)
mounting	Through Hole
mounting type	Through Hole
number of contacts	5
number of levels	1
number of positions	5
number of rows	1
operating temperature	-40В°C ~ 105В°C
package	Bulk
партномер	8001098420
part status	active
pitch	0.200"" (5.08mm)
positions per level	5
ppap	No
rohs status	ROHS3 Compliant
terminal pitch (mm)	05.08.2024
termination method	Solder
termination style	Solder
tradename	Eurostyle
type	Shrouded Header(2 Sides)
вес, г	1.88
voltage - ul	300V
Время загрузки	19:10:38
