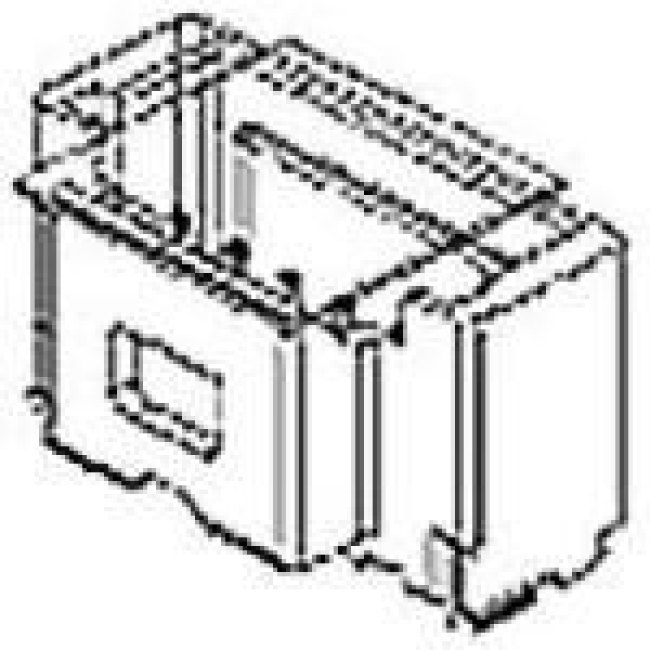

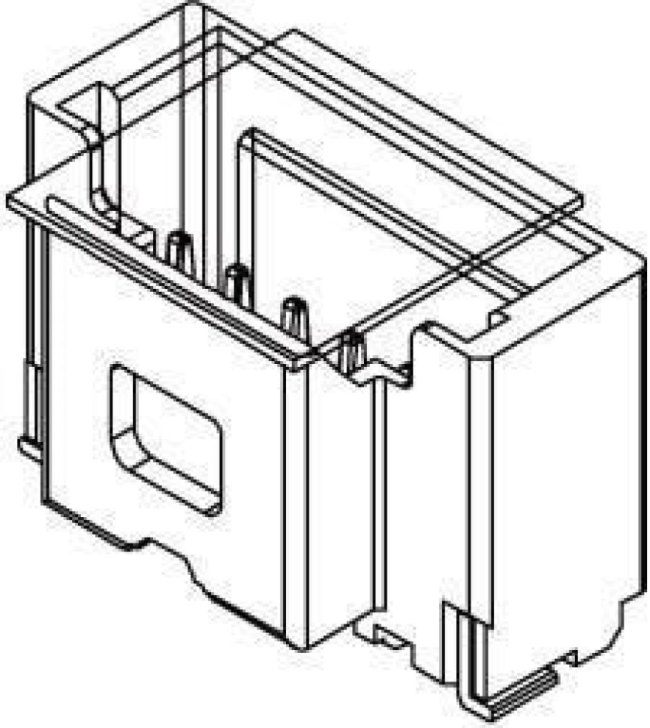

5013311407, Conn Shrouded Header (4 Sides) HDR 14 POS 1mm Solder ST Top Entry SMD Pico-Clasp T/R
Оставить отзыв
В избранноеВ сравнение
Артикул: 5013311407
- Обзор
- Характеристики
- Отзывы (0)
- Реквизиты
Connectors\Wire and PCB Connector\Connector Headers and PCB ReceptaclesЗаглушка Conn с кожухом (4 стороны) HDR 14 POS 1 мм Solder ST Верхний вход SMD Пико-застежка T / R
| Информация о производителе | |
| Производитель | Molex |
| Бренд | Molex |
| Основные | |
| applications | General Purpose |
| application: | Wire-to-Board, Signal |
| automotive | No |
| body orientation | Straight |
| connector type | Header |
| contact finish - mating | Tin |
| contact finish thickness - mating | 40.0Вµin(1.02Вµm) |
| contact gender: | Pin(Male) |
| contact material | Phosphor Bronze |
| contact material: | Tin |
| contact plating: | Tin |
| contact plating thickness | (1/1)um |
| contact type | Male Pin |
| current rating: | 1 A |
| current rating (amps) | - |
| Дата загрузки | 10.04.2024 |
| eccn (us) | ear99 |
| eu rohs | compliant |
| factory pack quantity: factory pack quantity: | 1100 |
| fastening type | Latch Holder |
| features | Pick and Place, Solder Retention |
| gender | HDR |
| housing material: | Nylon |
| ingress protection | - |
| insulation color | Natural |
| insulation height | 0.213"(5.40mm) |
| insulation material | Polyamide(PA46), Nylon 4/6 |
| insulation resistance (mohm) | 100 |
| категория | Кнопки, переключатели, разъемы, реле/Разъемы |
| manufacturer | Molex |
| manufacturer: | Molex |
| material flammability rating | UL94 V-0 |
| mating cycle (cycles) | 30 |
| maximum contact resistance (mohm) | 20 |
| maximum current rating (a) | 1/Contact |
| maximum operating temperature: | +105 C |
| maximum operating temperature (°c) | 105 |
| maximum voltage rating | 100VDC|100VAC |
| minimum operating temperature: | -40 C |
| minimum operating temperature (°c) | -40 |
| mounting | surface mount |
| mounting angle: | Straight |
| mounting style: | SMD/SMT |
| mounting type | Surface Mount |
| number of contacts | 14 |
| number of positions | 14 |
| number of positions: | 14 Position |
| number of positions loaded | All |
| number of rows | 1 |
| number of rows: | 1 Row |
| operating temperature | - |
| packaging | Digi-ReelВ® |
| партномер | 8001224186 |
| part status | active |
| pitch: | 1 mm |
| polarization type | Center Slot |
| ppap | No |
| product: | Headers |
| product category: | Headers & Wire Housings |
| product type: | Headers & Wire Housings |
| series | Pico-Clasp 501331 |
| series: | 501331 |
| style | Board to Cable/Wire |
| subcategory: | Headers & Wire Housings |
| terminal pitch (mm) | 1 |
| termination | Solder |
| termination method | Solder |
| termination style: | Solder |
| tradename | Pico-Clasp |
| tradename: | Pico-Clasp |
| type | Shrouded Header(4 Sides) |
| type: | Shrouded |
| вес, г | 0.27 |
| voltage rating | - |
| voltage rating: | 50 VAC/DC |
| Время загрузки | 18:18:56 |
