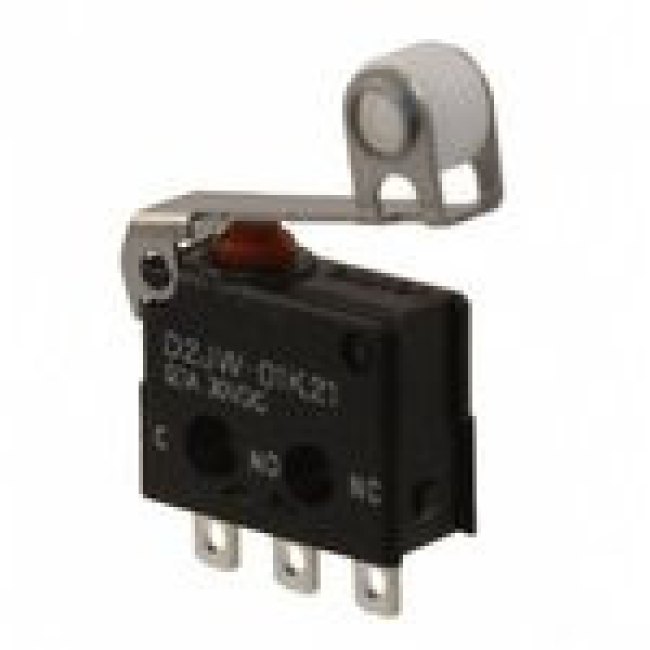

Name: D2JW-01K21, Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 0.1A 30VDC 0.98N Screw Mount Solder
SKU: D2JW-01K21

D2JW-01K21, Switch Snap Action N.O./N.C. SPDT Hinge Roller Lever 0.1A 30VDC 0.98N Screw Mount Solder

Подробное описание

1 470 ₽

- +

Бонус: 29.4 !

Бонусная программа

Итого: 1 470 ₽

Купить

Switch SPDT Chassis Mount

Основные
actuator style	Hinge Roller Lever
actuator type	Lever, Roller
body orientation	Straight
circuit	SPDT
current rating (amps)	100mA (DC)
differential travel	0.020"" (0.5mm)
eccn	EAR99
eccn (us)	ear99
electrical life	100,000 Cycles
electrical life (cycles)	100000
eu rohs	compliant
htsus	8536.50.9040
ingress protection	IP67 - Dust Tight, Waterproof
maximum current rating (a)	0.1@30VDC
maximum movement differential (mm)	0.5
maximum operating temperature (°c)	85
mechanical life	1,000,000 Cycles
mechanical life (cycles)	1000000
minimum operating temperature (°c)	-40
moisture sensitivity level (msl)	1 (Unlimited)
mounting	Screw Mount
mounting type	Chassis Mount
operating force	100gf
operating force (n)	0.98
operating position	0.575"" (14.6mm)
operating temperature	-40В°C ~ 85В°C
overtravel	0.045"" (1.1mm)
package	Bulk
part status	active
pole throw configuration	SPDT
pretravel	0.205"" (5.2mm)
release force	20gf
rohs status	RoHS Compliant
series	D2JW ->
switch configuration	N.O./N.C.
switch function	On-Mom
termination style	Solder
voltage rating - dc	30V
